10.4 inch 1024×768 LVDS Medical application

Post author By hqt
Post date July 20, 2020
No Comments on 10.4 inch 1024×768 LVDS Medical application

10.4 inch 1024×768 LVDS Medical application

JWS104P0BLA36.V1 is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor (TFT) as switching devices. This panel has a 10.4 inch diagonally measured active display area with resolution 1024 x 768. This product is composed ofa TFT LCD panel, polarizers, driver ICs, FPC and PCBA.It is widely used in medical, home appliance, instruments, industry, commercial display, etc.

JWS is a TFT LCD manufacturer with over ten years experience in LCD industry, Our products with wide temperature, high luminance and wide view angle can work under special environment. JWS products are exported to more than 50 countries and regions, which are available in sizes range from 2" to 13" TFT LCD. JWS TFT LCD are including options of TFT LCD, TFT LCD with controller board, industry standard TFT LCD, and LCD with wide operation temperatures -20℃~+70℃ or -30℃ to +80℃.

JWS TFT displays are available in various display resolutions including 320 x 240, 480x272, 640x480, 800x480, 1024x600, 1024x768 and 1280x800 even HD and FHD, have more than one interface available including MCU, RGB, MIPI and LVDS, and JWS can provide two touch panels optional in resistive RTP and CTP technology, including air bonding and optical bonding.

Furthermore, JWS also has many more customized solutions and special sizes LCD. JWS warmly welcome more and more customers around the world to develop LCD solutions together.

General Specifications

Item	Specification	Unit
Display Size	10.4	inches
Display Type	Transmissive, a-Si	-
Active Area(H×V)	210.432(H) × 157.824(V)	mm
Number of Dots(HxV)	1024 × RGB × 768	dot
Pixe\| Pitch(H×V)	0.2055 × 0.2055	mm
Color Arrangement	RGB Stripe	-
Color Numbers	256k/16.7M	-
Outline Dimension(H×V×T)	225.8(H) × 174.3(V) × 6.6(D)	mm
NTSC(CIE1931)(Under C light)	60(Typ.)	%
White Point(x,y)(Under C light)	x: 0.318, y: 0.366(Typ.)
Response Time	≤30	ms
Viewing Angle(Light On)(R/U/L/D)	CR ≥ 10 @ R/L/U/D (80"/80"/80"/80") (Typ.)
Surface Treatment	HC
Contrast Ratio( Light On)	1000:1(Typ)
Operation Temperature	-30~80	°C
Storage Temperature	-30~85	°C
Interface	LVDS
Weight	396	g
Panel power consumption	Max: 1.4w @white pattem	W

Note 1: Refer to Mechanical Drawing

10"-13"

10.1 inch 1024×600 RGB interface High Resolution

Post author By hqt
Post date July 20, 2020
No Comments on 10.1 inch 1024×600 RGB interface High Resolution

10.1 inch 1024×600 RGB interface High Resolution

The model JWS101P0BRA42.V0 is a color active matrix thin film transistor (TFT) liquid crystal display without plagiarizer. This model is composed of amorphous silicon TFT as a switching device. This TFT LCD has a 10.1-inch wide (16:9) diagonally measured active display area with WVGA (1024 horizontal by 600 vertical pixel) resolution. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripes.It is widely used in automotive，home appliance, instruments, industry, commercial display, etc.

JWS is a TFT LCD manufacturer with over ten years experience in LCD industry, Our products with wide temperature, high luminance and wide view angle can work under special environment.

JWS products are exported to more than 50 countries and regions, which are available in sizes range from 2" to 13" TFT LCD. JWS TFT LCD are including options of TFT LCD, TFT LCD with controller board, industry standard TFT LCD, and LCD with wide operation temperatures -20℃~+70℃ or -30℃ to +80℃.

JWS TFT displays are available in various display resolutions including 320 x 240, 480x272, 640x480, 800x480, 1024x600, 1024x768 and 1280x800 even HD and FHD, have more than one interface available including MCU, RGB,MIPI and LVDS, and JWS can provide two touch panels optional in resistive RTP and CTP technology, including air bonding and optical bonding.

Furthermore, JWS also has many more customized solutions and special sizes LCD. JWS warmly welcome more and more customers around the world to develop LCD solutions together.

General Specifications

Item	Specification	Unit
Screen Size	10.1 inches	Diagonal
Number of Pixel	1024 RGB(H) × 600(V)	Pixels
Display Area	222.72(H) x 125.28(V)	mm
Outline Dimension	235.0 x 143.0 x 5.0(Typ)	mm
Display Mode	Normally Black	--
Pixel Arrangement	RGB Vertical Stripe	--
Pixel Pitch	0.2175(H) × 0.2088(V)	mm
Back-light	LED SIde-light type	--
Surface treatment	Anti-glare	--
Interface	TTL

Note 1: Refer to Mechanical Drawing

10"-13"

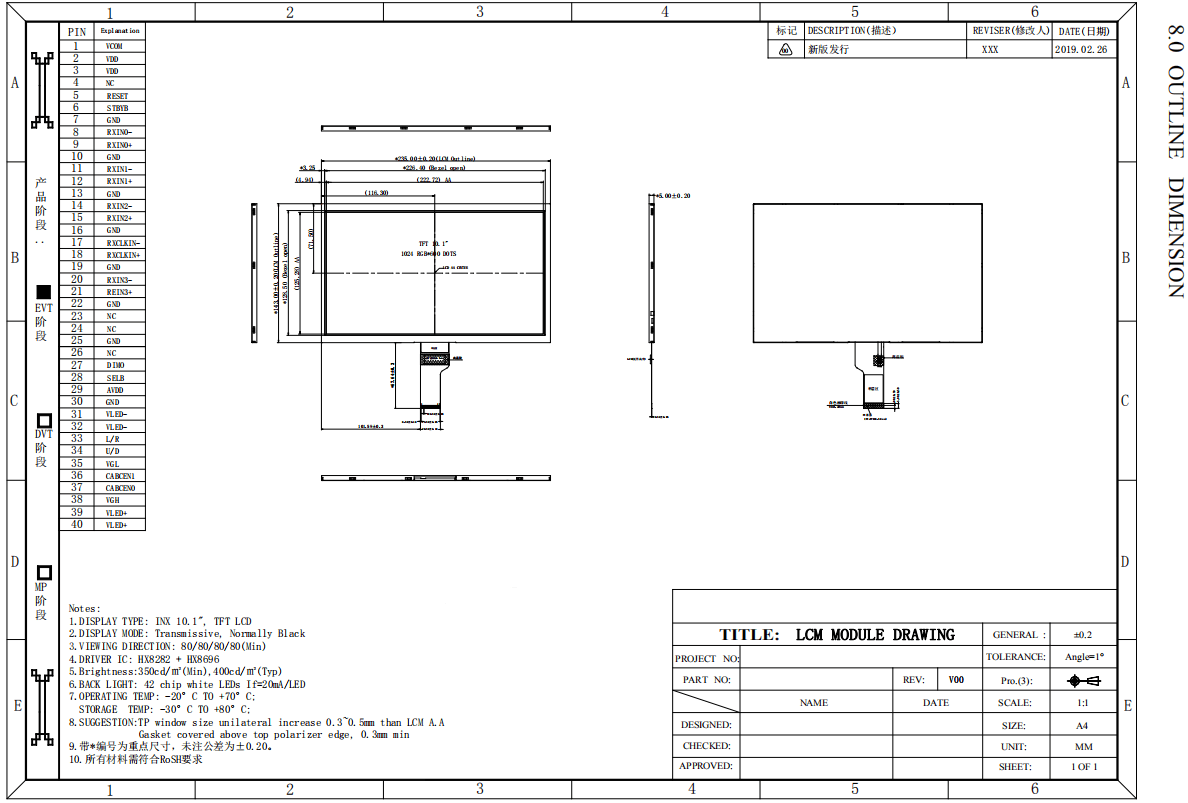

10.1 inch 1024×600 LVDS 40PIN interface

Post author By hqt
Post date July 20, 2020
No Comments on 10.1 inch 1024×600 LVDS 40PIN interface

10.1 inch 1024×600 LVDS 40PIN interface

The model JWS101P0BLA42.V0 is a color active matrix thin-film transistor (TFT) liquid crystal display without plagiarizer. This model is composed of amorphous silicon TFT as a switching device. This TFT LCD has a 10.1-inch wide (16:9) diagonally measured active display area with WVGA (1024 horizontal by 600 vertical pixels) resolution. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripes. It is widely used in automotive，home appliances, instruments, industry, commercial displays, etc.

JWS is a TFT LCD manufacturer with over ten years of experience in the LCD industry, Our products with wide temperatures, high luminance, and wide view angle can work under a special environment. JWS products are exported to more than 50 countries and regions, which are available in sizes ranging from 2" to 13" TFT LCD. JWS TFT LCD are including options of TFT LCD, TFT LCD with controller board, industry-standard TFT LCD, and LCD with wide operation temperatures -20℃~+70℃ or -30℃ to +80℃.

Furthermore, JWS also has many more customized solutions and special sizes LCD. JWS warmly welcomes more and more customers around the world to develop LCD solutions together.

General Specifications

Item	Specification	Unit
Screen Size	10.1 inches	Diagonal
Number of Pixel	1024 RGB(H) × 600(V)	Pixels
Display Area	222.72(H) x 125.28(V)	mm
Outline Dimension	235.0 x 143.0 x 5.0(Typ)	mm
Display Mode	Normally Black	--
Pixel Arrangement	RGB Vertical Stripe	--
Pixel Pitch	0.2175(H) × 0.2088(V)	mm
Back-light	LED SIde-light type	--
Surface treatment	Anti-glare	--
Interface	LVDS

Note 1: Refer to Mechanical Drawing

7"-9"

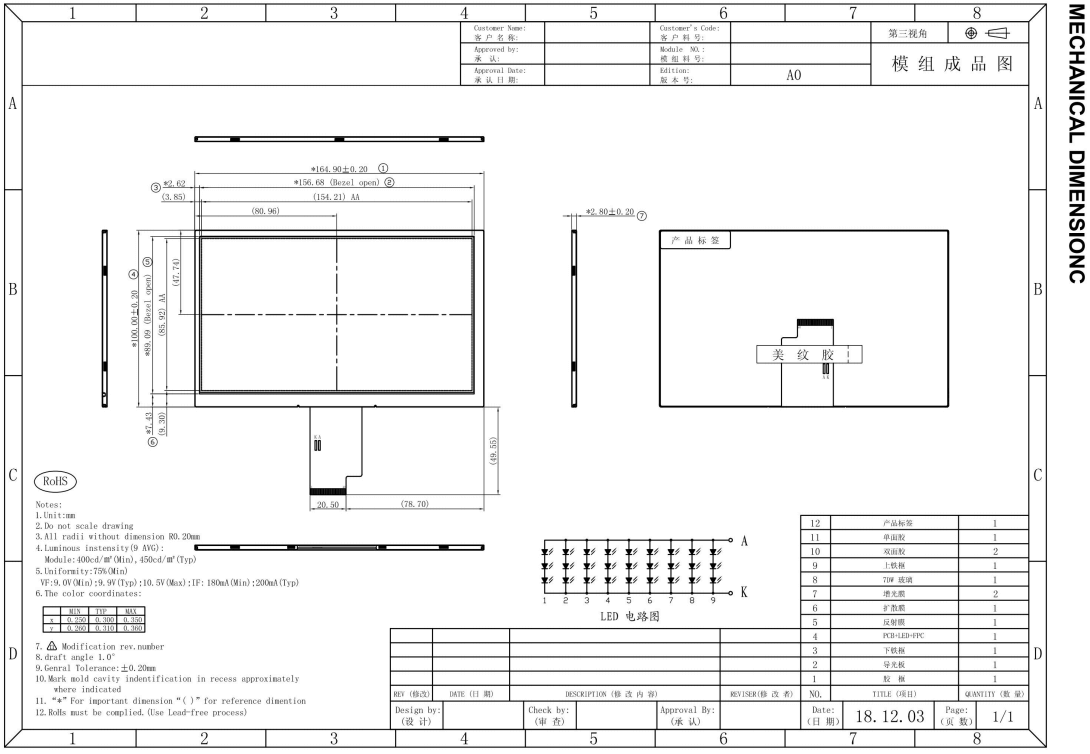

7 inch TFT LCD TN 800×480 RGB 50PIN with Long FPC

Post author By hqt
Post date July 20, 2020
No Comments on 7 inch TFT LCD TN 800×480 RGB 50PIN with Long FPC

7 inch TFT LCD TN 800×480 RGB 50PIN with Long FPC

JWS070N1ARA27.V2 is a transmissive type color active-matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT LCD panel, driver ICs, and a backlight unit.

JWS TFT LCD Module Manufacturer

JWS standard TFT LCD display modules are available in sizes to range from 2" to 13" TFT LCD. JWS TFT LCD are including options of TFT LCD, TFT LCD with controller board, industry-standard TFT LCD, and LCD with wide operation temperatures -20℃~+70℃ or -30℃ to +80℃.

JWS TFT displays are available in various graphic display resolutions including 320 x 240, 480x272, 640x480, 800x480, 1024x600, 1024x768 and 1280x800 even HD and FHD. Most JWS TFT display modules have more than one interface available including MCU, RGB, MIPI, and LVDS, and JWS can provide two touch panels optional in resistive RTP and CTP technology.

However, JWS also has many more customized solutions and special sizes LCD available according to customer’s requirements.

General Specifications

Item	Specification	Unit
Display Size(Diagonal)	7.0”
LCD type	TN TFT
Display Mode	Transmissive /Normal white
Resolution	800 RGB x 480	Pixels
View Direction	12 O’clock	Best Image
Gray Scale Inversion Direction	6 O’clock
Module Outline	164.9(H) x100(V)x5.7(T) (Note1 )	mm
Active Area	154.08(H) x85.92(V)	mm
Pixel Size	192.6(H) x179(V)	um
Pixel Arrangement	R.G.B Stripe12 O’clock
Polarizer Surface Treatment	Anti-glare
Display Colors	16.7M
Interface	24 Bit RGB
With or Without Touch Panel	Without
Operating Temperature	-20～70	ºC
Storage Temperature	-30～80	ºC
Weight	150	g

7"-9"

7 inch TFT LCD IPS 1024×600 MIPI

Post author By hqt
Post date July 20, 2020
No Comments on 7 inch TFT LCD IPS 1024×600 MIPI

7 inch TFT LCD IPS 1024×600 MIPI

The model JWS070P2AMA27.V0 is 7” color TFT LCD (Thin Film Transistor Liquid Crystal Display). full cell product (after LC injected).The 7" screen produces 1024(×RGB) × 600 resolution image. This is MIPI interface. By applying R.G.B. input signal, full color images are displayed.

JWS TFT LCD Module Manufacturer

JWS standard TFT LCD display modules are available in sizes range from 2" to 13" TFT LCD. JWS TFT LCD are including options of TFT LCD, TFT LCD with controller board, industry standard TFT LCD, and LCD with wide operation temperatures -20℃~+70℃ or -30℃ to +80℃.

JWS TFT displays are available in various graphic display resolutions including 320 x 240, 480x272, 640x480, 800x480, 1024x600, 1024x768 and 1280x800 even HD and FHD. Most of JWS TFT display modules have more than one interface available including MCU, RGB,MIPI and LVDS, and JWS can provide two touch panels optional in resistive RTP and CTP technology.

However, JWS also has many more customized solutions and special sizes LCD available according to customer’s requirements.

General Specifications

Item	Specification	Unit
Screen size	7.inches	Diagonal
Number of Pixel	1024(H) × 3(RGB) × 600	Pixels
Display area	1542144(H) x 8592(V)	mm
Outline Dimension	164.80 X 100.0 X 350(Typ)	mm
Display Mode	Normally Black	--
Pixel arrangement	RGB Vertical stripe	--
Pⅸel pitch	0.15(H)x0.15(V)	mm
Back-light	LED Side-light type	--
Surface treatment	Antiglare, Hard-C(3H)	--

7"-9"

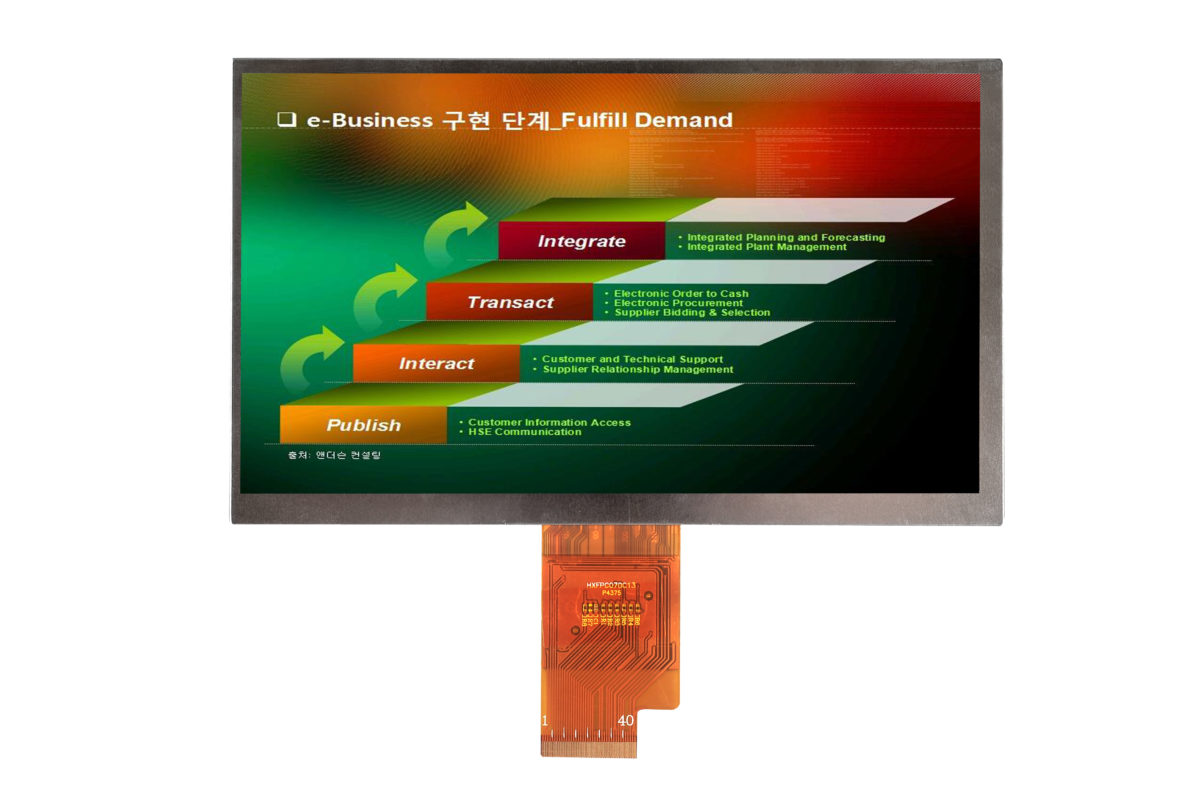

7 inch TFT LCD IPS 1024×600 LVDS 40PIN

Post author By hqt
Post date July 20, 2020
No Comments on 7 inch TFT LCD IPS 1024×600 LVDS 40PIN

7 inch TFT LCD IPS 1024×600 LVDS 40PIN

JWS070P3ALB27.V0 & JWS070P3ALA27.V0 is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT LCD panel, driver ICs and a backlight unit. The model storage temperature is -30℃~+80℃, and the luminance is 450 cd/m2. The product is widely used in automotive，home appliance, instruments, industry, commercial display, etc.

JWS TFT displays are available in various display resolutions including 320 x 240, 480x272, 640x480, 800x480, 1024x600, 1024x768 and 1280x800 even HD and FHD, have more than one interface available including MCU, RGB,MIPI and LVDS, and JWS can provide two touch panels optional in resistive RTP and CTP technology, including air bonding and optical bonding.

Furthermore, JWS also has many more customized solutions and special sizes LCD. JWS warmly welcome more and more customers around the world to develop LCD solutions together.

General Specifications

ITEM	SPECIFICATION
Display Area(mm)	154.2144(H) × 85.92(V)
Number of Pixels	1024(H) × 3(RGB) × 600
Pixel Pitch(mm)	0.1506(H) × 0.1432(V)
Color Pixel Arrangement	RGB vertical stripe
Display Mode	Normally Black
Number of Colors	16.7M
Brightness(cd/m 2)	450nit(typ)
Response Time(ms)	25ms(typ.)
Contrast Ratio	800:1
Viewing Angle(CR≥10)	170degree(Horizontal.)
Viewing Angle(CR≥10)	170degree(vertical)
Color Saturation	50%(typ.)
Optimum Viewing Direction	ALL
Power Consumption(W)	2.592
Interface Connection	LVDS, 40pin
Module Size (mm)	ALL
Module Size (mm)		Min.	Typ.	Max
	Horizontal (H)	164.70	164.90	165.10
	Vertical (V)	99.80	100.00	100.20
	Depth (D)	2.60	2.80	3.00
Module Weight(g)	TBD(Typ)
Blacklight Unit	LED
Surface Treatment	Anti-Glare 3H

Note 1: Refer to Mechanical Drawing

2.4"-5"

5 inch TFT LCD high resolution 800X480

Post author By hqt
Post date July 20, 2020
No Comments on 5 inch TFT LCD high resolution 800X480

5 inch TFT LCD high resolution 800X480

JWS050N0DRC12.V0 is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT LCD panel, driver ICs and a backlight unit. The model storage temperature is -30℃~+80℃, and the luminance is 400 cd/m2. The product is widely used in home appliance, instruments, industry, commercial display, PIN Pad, elevator,etc.

JWS TFT displays are available in various display resolutions including 320 x 240, 480x272, 640x480, 800x480, 1024x600, 1024x768 and 1280x800 even HD and FHD, have more than one interface available including MCU, RGB,MIPI and LVDS, and JWS can provide two touch panels optional in resistive RTP and CTP technology, including air bonding and optical bonding.

Furthermore, JWS also has many more customized solutions and special sizes LCD. JWS warmly welcome more and more customers around the world to develop LCD solutions together.

General Specifications

Item	Specification	Remark
LCD size	5.0 inch (Diagonal)
Driver element	a-Si TFT active matrix
Resolution	800 × 3(RGB) × 480
Display mode	Normally white, Transmissive
Dot pitch	0.135(W) × 0.135(H) mm
Active area	108(W) × 648(H) mm
Module size	120.7(w) × 75.8(H) × 28(D) mm	Note1
Surface treatment	Anti-Glare
Color arrangement	RGB-stripe
Interface	Digital
Backlight Power consumption	TBD
Panel Power consumption	TBD
Weight	TBD

Note 1: Refer to Mechanical Drawing

2.4"-5"

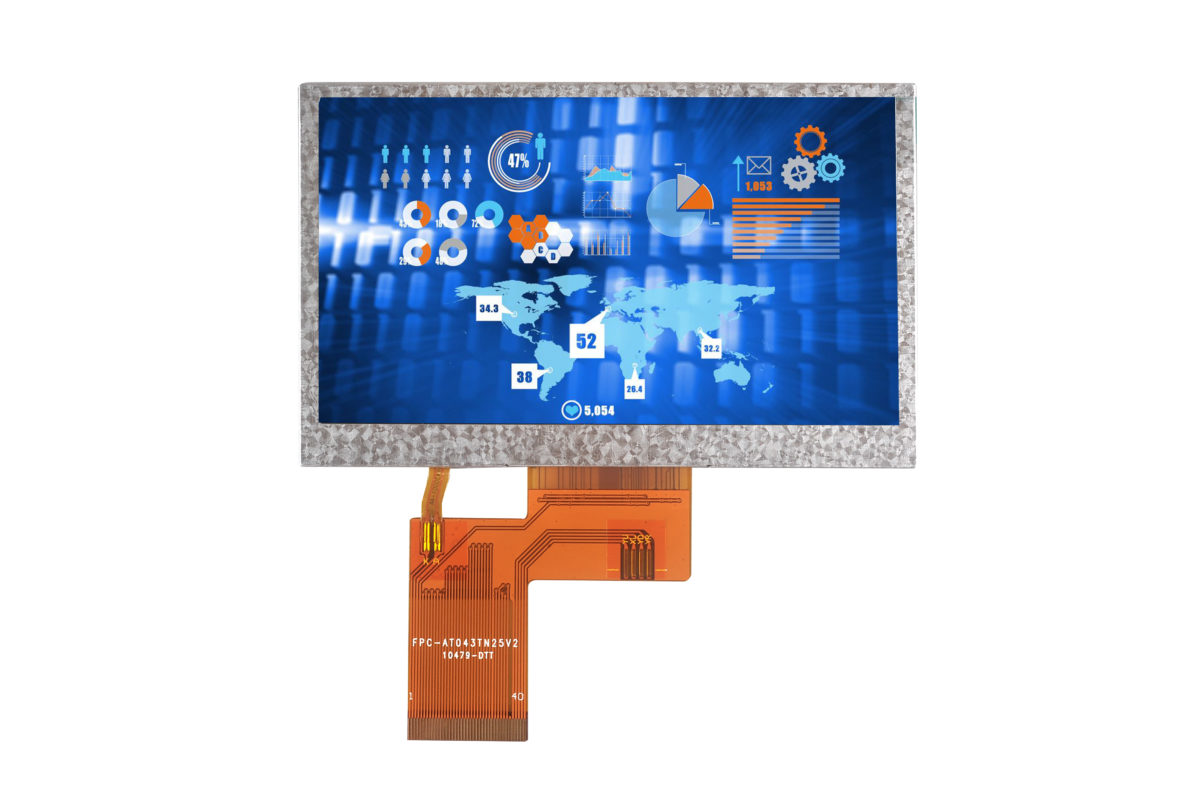

4.3" TFT LCD 480×272 RGB 40PIN with high luminance

Post author By hqt
Post date July 20, 2020
No Comments on 4.3" TFT LCD 480×272 RGB 40PIN with high luminance

4.3" TFT LCD 480×272 RGB 40PIN with high luminance

JWS043N0CRC10.V0 is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT LCD panel, driver ICs and a backlight unit. The model operation temperature is -20℃~+70℃, and the luminance is 400 cd/m2. The product is widely used in home appliance, instruments, industry, commercial display, etc.

JWS is a TFT LCD Manufacturer with over ten years experience in LCD industry, Our products with wide temperature, high luminance and wide view angle can work under special environment. JWS products are exported to more than 50 countries and regions, which are available in sizes range from 2" to 13" TFT LCD. JWS TFT LCD are including options of TFT LCD, TFT LCD with controller board, industry standard TFT LCD, and LCD with wide operation temperatures -20℃~+70℃ or -30℃ to +80℃.

JWS TFT displays are available in various display resolutions including 320 x 240, 480x272, 640x480, 800x480, 1024x600, 1024x768 and 1280x800 even HD and FHD, have more than one interface available including MCU, RGB,MIPI and LVDS, and JWS can provide two touch panels optional in resistive RTP and CTP technology, including air bonding and optical bonding.

Furthermore, JWS also has many more customized solutions and special sizes LCD. JWS warmly welcome more and more customers around the world to develop LCD solutions together.

General Specifications

Item	Specification	Remark
LCD size	4.3 inch(Diagonal)
Driver element	a-Si TFT active matrix
Resolution	480 × 3(RGB) × 272
Display mode	Normally White, Transmissive
Dot pitch	0.066(W) × 0.198(H) mm
Active area	9504(W) × 53.856(H) mm
Module size	1054(W) × 67.07(H) × 30(D) mm	Note1
Surface treatment	Anti-Glare
Color arrangement	RGB-stripe
Interface	Digital
Backlight Power consumption	TBD W(Typ.)
Panel Power consumption	TBD W(Typ.)
Weight	TBD W(Typ.)

Note 1: Refer to Mechanical Drawing
