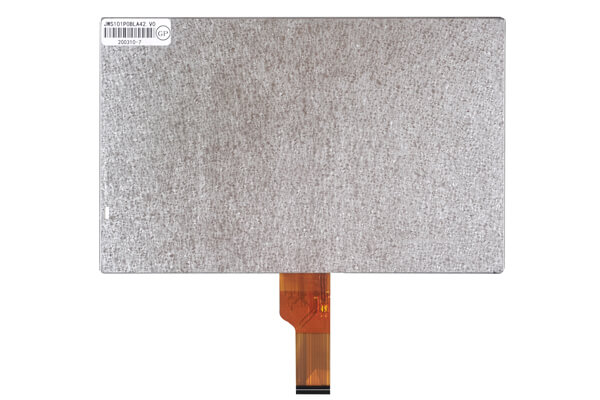

10.1 inch 1024×600 LVDS 40PIN interface
  • Model: No. JWS101P0BLA42.V0
  • Resolution: 1024 * 600 dots
  • View Direction: All viewing angel
  • Interface: LVDS
  • Brightness(cd/m²): 400

Get A Quote


Product Details

10.1 inch 1024×600 LVDS 40PIN interface

The model JWS101P0BLA42.V0 is a color active matrix thin-film transistor (TFT) liquid crystal display without plagiarizer. This model is composed of amorphous silicon TFT as a switching device. This TFT LCD has a 10.1-inch wide (16:9) diagonally measured active display area with WVGA (1024 horizontal by 600 vertical pixels) resolution. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripes. It is widely used in automotive,home appliances, instruments, industry, commercial displays, etc.

JWS is a TFT LCD manufacturer with over ten years of experience in the LCD industry, Our products with wide temperatures, high luminance, and wide view angle can work under a special environment. JWS products are exported to more than 50 countries and regions, which are available in sizes ranging from 2" to 13" TFT LCD. JWS TFT LCD are including options of TFT LCD, TFT LCD with controller board, industry-standard TFT LCD, and LCD with wide operation temperatures -20℃~+70℃ or -30℃ to +80℃.

JWS TFT displays are available in various display resolutions including 320 x 240, 480x272, 640x480, 800x480, 1024x600, 1024x768 and 1280x800 even HD and FHD, have more than one interface available including MCU, RGB, MIPI and LVDS, and JWS can provide two touch panels optional in resistive RTP and CTP technology, including air bonding and optical bonding.

Furthermore, JWS also has many more customized solutions and special sizes LCD. JWS warmly welcomes more and more customers around the world to develop LCD solutions together.

General Specifications

Item Specification Unit
Screen Size 10.1 inches Diagonal
Number of Pixel 1024 RGB(H) × 600(V) Pixels
Display Area 222.72(H) x 125.28(V) mm
Outline Dimension 235.0 x 143.0 x 5.0(Typ) mm
Display Mode Normally Black --
Pixel Arrangement RGB Vertical Stripe --
Pixel Pitch 0.2175(H) × 0.2088(V) mm
Back-light LED SIde-light type --
Surface treatment Anti-glare --
Interface LVDS

Note 1: Refer to Mechanical Drawing
