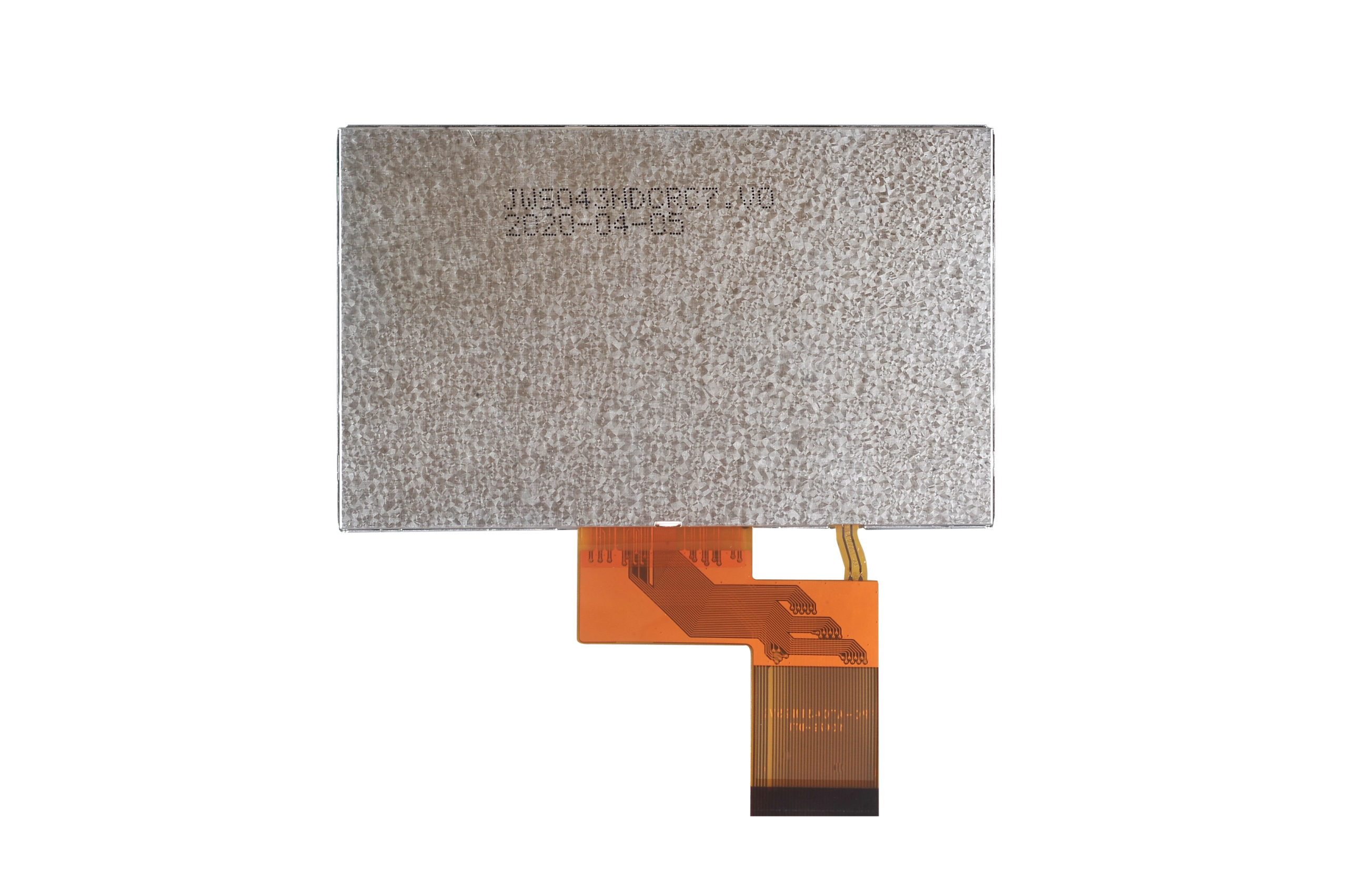

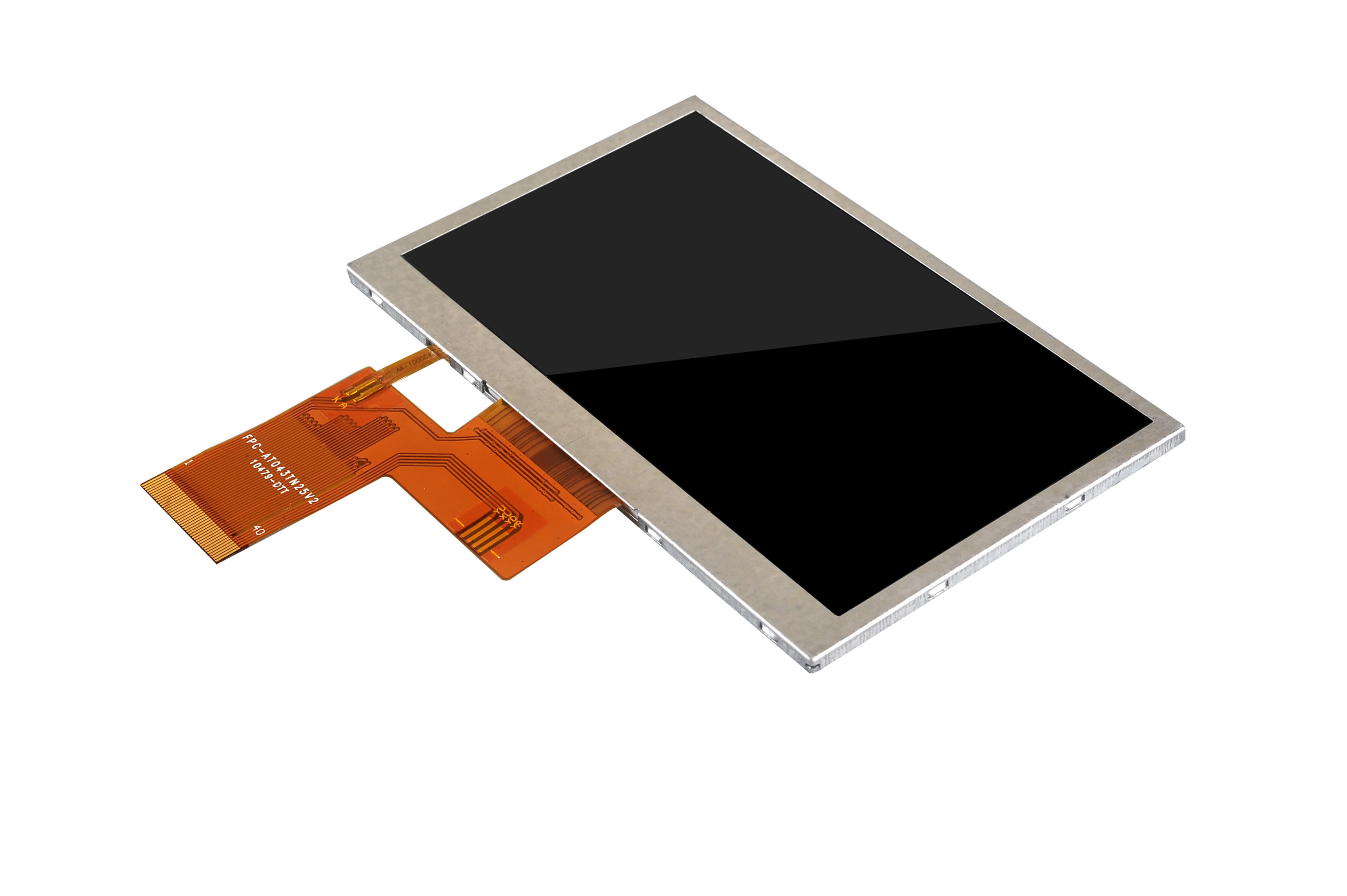

4.3" TFT LCD 480×272 RGB 40PIN with high luminance
  • Model: No. JWS043N0CRC10.V0
  • Resolution: 480 x 272 dots
  • View Direction: 12 o’clock
  • Interface: RGB
  • Brightness(cd/m²): 400

Get A Quote


Product Details

4.3" TFT LCD 480×272 RGB 40PIN with high luminance

JWS043N0CRC10.V0 is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT LCD panel, driver ICs and a backlight unit. The model operation temperature is -20℃~+70℃, and the luminance is 400 cd/m2. The product is widely used in home appliance, instruments, industry, commercial display, etc.

JWS is a TFT LCD Manufacturer with over ten years experience in LCD industry, Our products with wide temperature, high luminance and wide view angle can work under special environment. JWS products are exported to more than 50 countries and regions, which are available in sizes range from 2" to 13" TFT LCD. JWS TFT LCD are including options of TFT LCD, TFT LCD with controller board, industry standard TFT LCD, and LCD with wide operation temperatures -20℃~+70℃ or -30℃ to +80℃.

JWS TFT displays are available in various display resolutions including 320 x 240, 480x272, 640x480, 800x480, 1024x600, 1024x768 and 1280x800 even HD and FHD, have more than one interface available including MCU, RGB,MIPI and LVDS, and JWS can provide two touch panels optional in resistive RTP and CTP technology, including air bonding and optical bonding.

Furthermore, JWS also has many more customized solutions and special sizes LCD. JWS warmly welcome more and more customers  around the world to develop LCD solutions together.

General Specifications

Item Specification Remark
LCD size 4.3 inch(Diagonal)
Driver element a-Si TFT active matrix
Resolution 480 × 3(RGB) × 272
Display mode Normally White, Transmissive
Dot pitch 0.066(W) × 0.198(H) mm
Active area 9504(W) × 53.856(H) mm
Module size 1054(W) × 67.07(H) × 30(D) mm Note1
Surface treatment Anti-Glare
Color arrangement RGB-stripe
Interface Digital
Backlight Power consumption TBD W(Typ.)
Panel Power consumption  TBD W(Typ.)
Weight  TBD W(Typ.)

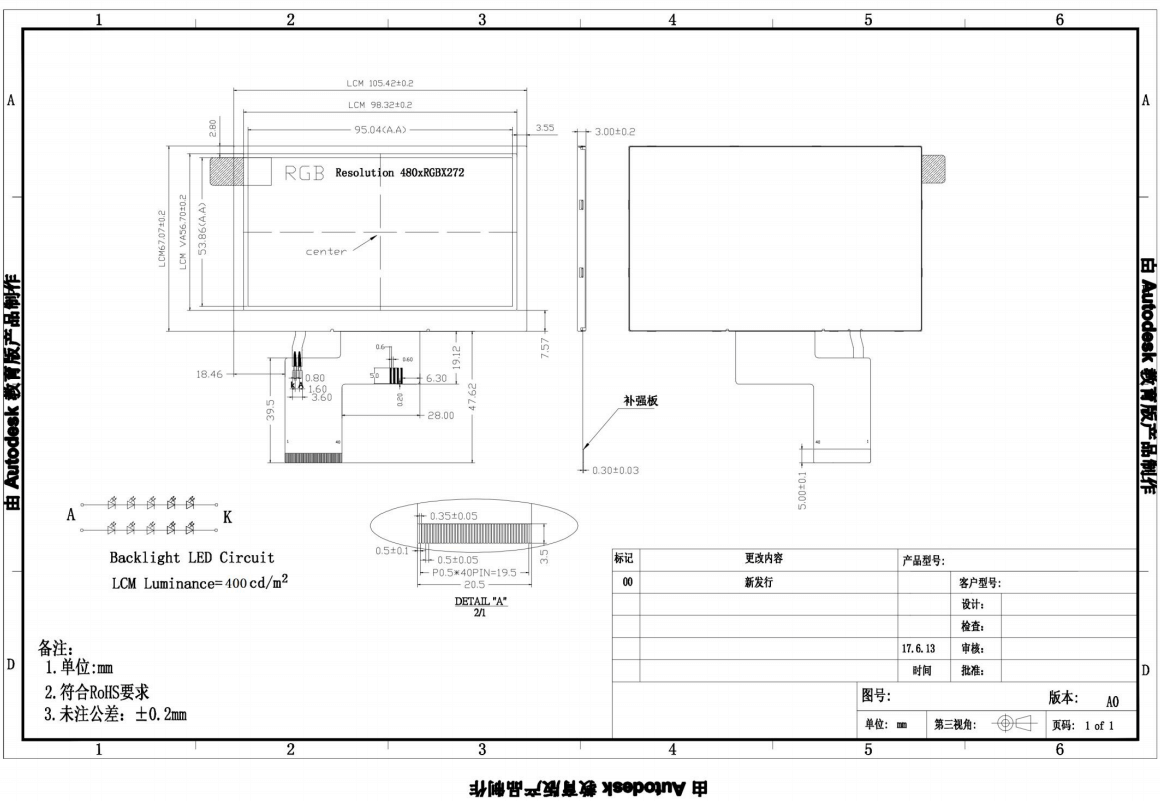

Note 1: Refer to Mechanical Drawing
4.3” TFT LCD-01
