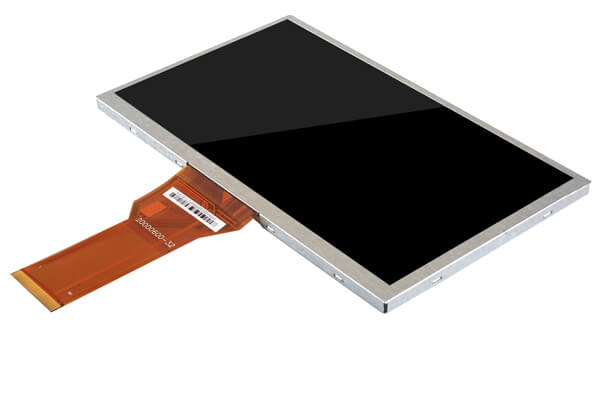

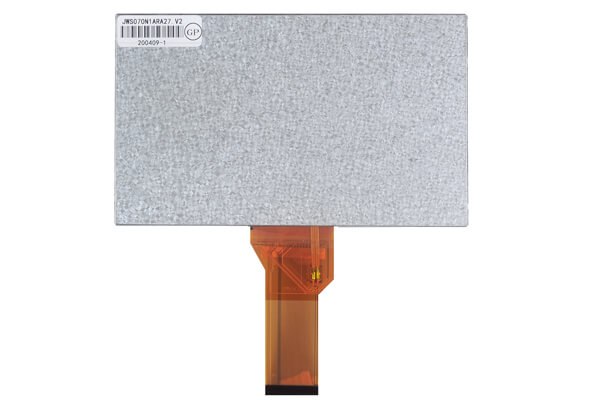

7 inch TFT LCD TN 800×480 RGB 50PIN with Long FPC
  • Model: No. JWS070N1ARA27.V2
  • Resolution: 800 x 480 dots
  • View Direction: 12 O’clock
  • Interface: RGB
  • Brightness(cd/m²): 420

Get A Quote


Product Details

7 inch TFT LCD TN 800×480 RGB 50PIN with Long FPC

JWS070N1ARA27.V2 is a transmissive type color active-matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT LCD panel, driver ICs, and a backlight unit.

JWS TFT LCD Module Manufacturer

JWS standard TFT LCD display modules are available in sizes to range from 2" to 13" TFT LCD. JWS TFT LCD are including options of TFT LCD, TFT LCD with controller board, industry-standard TFT LCD, and LCD with wide operation temperatures -20℃~+70℃ or -30℃ to +80℃.

JWS TFT displays are available in various graphic display resolutions including 320 x 240, 480x272, 640x480, 800x480, 1024x600, 1024x768 and 1280x800 even HD and FHD. Most JWS TFT display modules have more than one interface available including MCU, RGB, MIPI, and LVDS, and JWS can provide two touch panels optional in resistive RTP and CTP technology.

However, JWS also has many more customized solutions and special sizes LCD available according to customer’s requirements.

General Specifications

Item Specification Unit
Display Size(Diagonal) 7.0”
Display Mode Transmissive /Normal white
Resolution 800 RGB x 480 Pixels
View Direction 12 O’clock Best Image
Gray Scale Inversion Direction 6 O’clock
Module Outline 164.9(H) x100(V)x5.7(T)  (Note1 ) mm
Active Area 154.08(H) x85.92(V) mm
Pixel Size 192.6(H) x179(V) um
Pixel Arrangement R.G.B Stripe12 O’clock
Polarizer Surface Treatment Anti-glare
Display Colors 16.7M
Interface 24 Bit RGB
With or Without Touch Panel Without
Operating Temperature -20~70 ºC
Storage Temperature -30~80 ºC
Weight 150 g
