10.1 inch 1024×600 RGB interface High Resolution
  • Model: No. JWS101P0BRA27.V0
  • Resolution: 1024 × 600 dots
  • View Direction: All viewing angel
  • Interface: RGB
  • Brightness(cd/m²): 400

Get A Quote

Share

Product Details

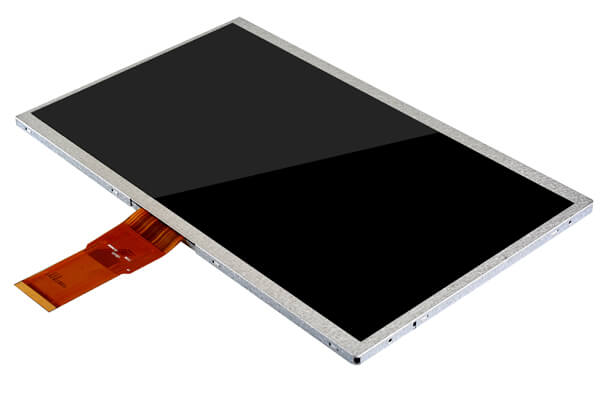

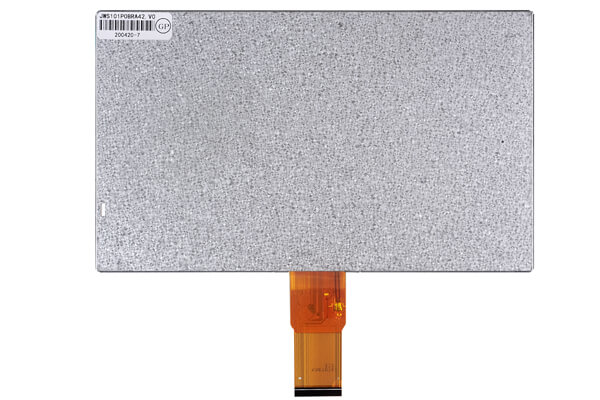

10.1 inch 1024×600 RGB interface High Resolution



The model JWS101P0BRA42.V0 is a color active matrix thin film transistor (TFT) liquid crystal display without plagiarizer. This model is composed of amorphous silicon TFT as a switching device. This TFT LCD has a 10.1-inch wide (16:9) diagonally measured active display area with WVGA (1024 horizontal by 600 vertical pixel) resolution. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripes.It is widely used in automotive,home appliance, instruments, industry, commercial display, etc.

JWS is a TFT LCD manufacturer with over ten years experience in LCD industry, Our products with wide temperature, high luminance and wide view angle can work under special environment.

JWS products are exported to more than 50 countries and regions, which are available in sizes range from 2" to 13" TFT LCD. JWS TFT LCD are including options of TFT LCD, TFT LCD with controller board, industry standard TFT LCD, and LCD with wide operation temperatures -20℃~+70℃ or -30℃ to +80℃.

JWS TFT displays are available in various display resolutions including 320 x 240, 480x272, 640x480, 800x480, 1024x600, 1024x768 and 1280x800 even HD and FHD, have more than one interface available including MCU, RGB,MIPI and LVDS, and JWS can provide two touch panels optional in resistive RTP and CTP technology, including air bonding and optical bonding.

Furthermore, JWS also has many more customized solutions and special sizes LCD. JWS warmly welcome more and more customers around the world to develop LCD solutions together.

General Specifications

Item Specification Unit
Screen Size 10.1 inches Diagonal
Number of Pixel 1024 RGB(H) × 600(V) Pixels
Display Area 222.72(H) x 125.28(V) mm
Outline Dimension 235.0 x 143.0 x 5.0(Typ) mm
Display Mode Normally Black --
Pixel Arrangement RGB Vertical Stripe --
Pixel Pitch 0.2175(H) × 0.2088(V) mm
Back-light LED SIde-light type --
Surface treatment Anti-glare --
Interface TTL

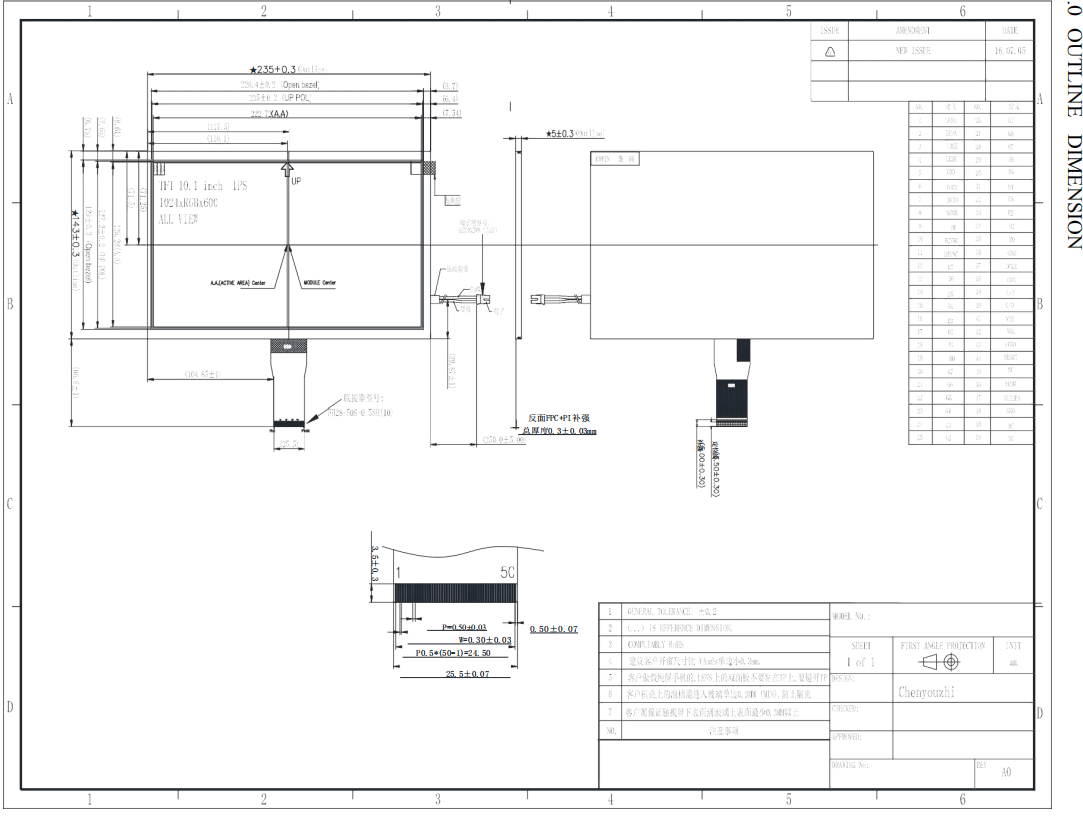

Note 1: Refer to Mechanical Drawing

10-1-inch-1024x600-rgb-01
