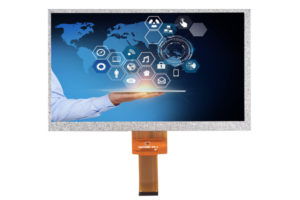

7 inch TFT LCD IPS 1024×600 MIPI
  • Model: No. JWS070P2AMA27.V0
  • Resolution: 1024 x 600 dots
  • View Direction: IPS
  • Interface: MIPI
  • Brightness(cd/m²): 400

Get A Quote


Product Details

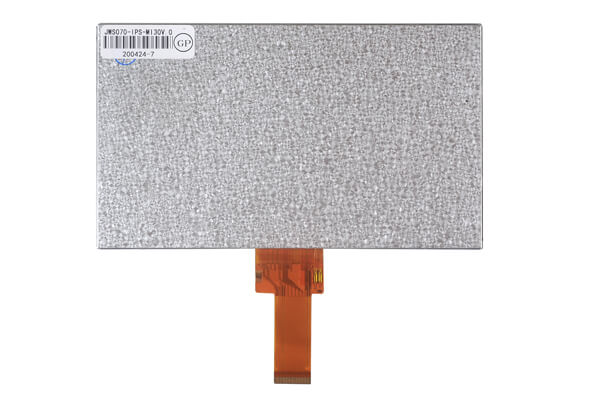

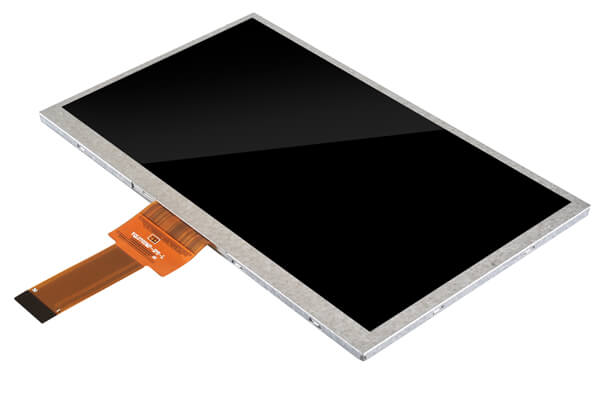

7 inch TFT LCD IPS 1024×600 MIPI

The model JWS070P2AMA27.V0 is 7” color TFT LCD (Thin Film Transistor Liquid Crystal Display). full cell product (after LC injected).The 7" screen produces 1024(×RGB) × 600 resolution image. This is MIPI interface. By applying R.G.B. input signal, full color images are displayed.

JWS TFT LCD Module Manufacturer

JWS standard TFT LCD display modules are available in sizes range from 2" to 13" TFT LCD. JWS TFT LCD are including options of TFT LCD, TFT LCD with controller board, industry standard TFT LCD, and LCD with wide operation temperatures -20℃~+70℃ or -30℃ to +80℃.

JWS TFT displays are available in various graphic display resolutions including 320 x 240, 480x272, 640x480, 800x480, 1024x600, 1024x768 and 1280x800 even HD and FHD. Most of JWS TFT display modules have more than one interface available including MCU, RGB,MIPI and LVDS, and JWS can provide two touch panels optional in resistive RTP and CTP technology.

However, JWS also has many more customized solutions and special sizes LCD available according to customer’s requirements.

General Specifications

Item Specification Unit
Screen size 7.inches Diagonal
Number of Pixel 1024(H) × 3(RGB) × 600 Pixels
Display area 1542144(H) x 8592(V) mm
Outline Dimension 164.80 X 100.0 X 350(Typ) mm
Display Mode Normally Black --
Pixel arrangement RGB Vertical stripe --
Pⅸel pitch 0.15(H)x0.15(V) mm
Back-light LED Side-light type --
Surface treatment Antiglare, Hard-C(3H) --
