- Model: No. JWS070P3ALA27.V0
- Resolution: 1024 × 600 dots
- View Direction: All viewing angel
- Interface: LVDS
- Brightness(cd/m²): 450
Get A Quote
Share
Product Details

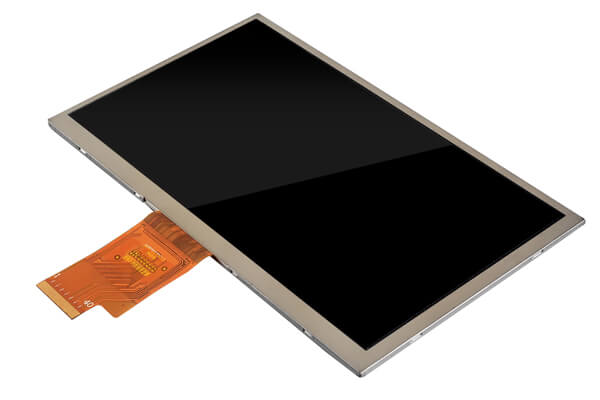

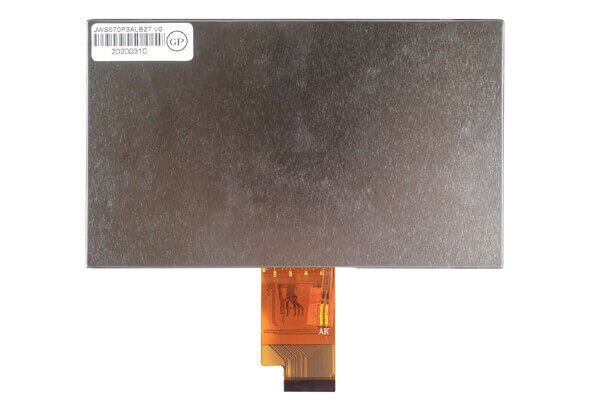

7 inch TFT LCD IPS 1024×600 LVDS 40PIN
JWS070P3ALB27.V0 & JWS070P3ALA27.V0 is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT LCD panel, driver ICs and a backlight unit. The model storage temperature is -30℃~+80℃, and the luminance is 450 cd/m2. The product is widely used in automotive，home appliance, instruments, industry, commercial display, etc.
JWS is a TFT LCD manufacturer with over ten years experience in LCD industry, Our products with wide temperature, high luminance and wide view angle can work under special environment. JWS products are exported to more than 50 countries and regions, which are available in sizes range from 2" to 13" TFT LCD. JWS TFT LCD are including options of TFT LCD, TFT LCD with controller board, industry standard TFT LCD, and LCD with wide operation temperatures -20℃~+70℃ or -30℃ to +80℃.
JWS TFT displays are available in various display resolutions including 320 x 240, 480x272, 640x480, 800x480, 1024x600, 1024x768 and 1280x800 even HD and FHD, have more than one interface available including MCU, RGB,MIPI and LVDS, and JWS can provide two touch panels optional in resistive RTP and CTP technology, including air bonding and optical bonding.
Furthermore, JWS also has many more customized solutions and special sizes LCD. JWS warmly welcome more and more customers around the world to develop LCD solutions together.
General Specifications
| ITEM | SPECIFICATION | |||
|---|---|---|---|---|
| Display Area(mm) | 154.2144(H) × 85.92(V) | |||
| Number of Pixels | 1024(H) × 3(RGB) × 600 | |||
| Pixel Pitch(mm) | 0.1506(H) × 0.1432(V) | |||
| Color Pixel Arrangement | RGB vertical stripe | |||
| Display Mode | Normally Black | |||
| Number of Colors | 16.7M | |||
| Brightness(cd/m 2) | 450nit(typ) | |||
| Response Time(ms) | 25ms(typ.) | |||
| Contrast Ratio | 800:1 | |||
| Viewing Angle(CR≥10) | 170degree(Horizontal.) | |||
| 170degree(vertical) | ||||
| Color Saturation | 50%(typ.) | |||
| Optimum Viewing Direction | ALL | |||
| Power Consumption(W) | 2.592 | |||
| Interface Connection | LVDS, 40pin | |||
| Module Size (mm) | ALL | |||
| Module Size (mm) | Min. | Typ. | Max | |
| Horizontal (H) | 164.70 | 164.90 | 165.10 | |
| Vertical (V) | 99.80 | 100.00 | 100.20 | |
| Depth (D) | 2.60 | 2.80 | 3.00 | |
| Module Weight(g) | TBD(Typ) | |||
| Blacklight Unit | LED | |||
| Surface Treatment | Anti-Glare 3H | |||
Note 1: Refer to Mechanical Drawing
