Security LCD Display: What You Need To Know

Screen technology is getting better every day and we now have so many video surveillance displays in the market. Several people are looking for the best security LCD display to monitor their homes and commercial facilities.

Many people still don’t understand the importance of security displays. Instead, they pair normal LCDs with their CCTV cameras in different environments. However, a security display is different than normal LCDs in many ways. There are various reasons why one should opt for security displays.

Factors like budget, scale, and location are often important dictators in choosing a security display solution. However, qualities, like efficiency, longevity, and reliability remain critical in making an informed buying decision.

What is a Security LCD Display?

A security LCD display or monitor is also called a CCTC or surveillance monitor. It is the screen on which you can see live or recorded events coming through security systems of cameras in line with NVR or DVR devices.

The flexible connectivity, long-run reliability, and high performance of security displays help you fulfill diverse surveillance environment requirements.

You can find security displays in the control rooms of shopping malls, offices, and homes, etc. The screen technology behind these displays differs from one display to another.

What to Look for in a Security LCD Display?

Nowadays, security and surveillance system displays are not only available in control rooms they also serve various security purposes from critical to general surveillance.

Therefore, the right security display should have the features to accommodate different security surveillance needs. It means that you should look for a security LCD display that should prove ideal according to different circumstances. In short, it must ensure greater performance standards for an array of applications.

Let’s go through different traits of a high-quality security display that you should look for in your security display.

1. Unparalleled Video Quality

The most important thing to look at when buying a security display should be the video quality. The level of security you implement depends heavily on the quality of images in the surveillance video.

You need to focus on more image quality factors to ensure the most optimal on-screen images apart from security cameras performance. What it means is that you must look for a highly professional security display in particular.

More than the display of video, the security displays are critical to achieving the best possible quality of the image when the high resolution of the monitor matches camera megapixels.

It is essential to find a professional security display with super-resolution and night mode, etc. It is vital that the security display fully show the actual footage of the security camera. Moreover, the security LCD display should also be able to enhance the quality of the image naturally.

Night Mode: This feature dims the LCD backlight levels when the environment is dark and keeps the actual viewing clear with greater visibility for dependable navigation.

Super Resolution: Enhance and upscale screen images to ensure better details in the layered texture vertically and horizontally.

CCTV Mode: It is an important feature of a modern-day security display. The display should fine-tune the security solutions of the user quickly. The monitor must provide the best security solutions in terms of backlight, saturation, sharpness, black level, super-resolution, noise reduction, and GAMMA, etc.

2. Multiple Display Connectivity

It can be costly and difficult to replace the current surveillance system under certain conditions. Therefore, it is a great idea to choose a surveillance display that offers multiple display inputs.

It will allow installers and system integrators to configure surveillance solutions better without additional switch equipment. Make sure that the security LCD display offers connectivity support for 3G-SDI/HD-SDI/SDI, HDMI, DVI, S-Video, VGA, BNC, and composite video connectors. It will bring greater user convenience.

Strong Protection

Surveillance displays work 24/7 without any interruption in high-traffic areas. To withstand this massive stress, the design of the surveillance system display needs to be highly robust.

Therefore, you must ensure that the casing and overall design of the display are durable and resist harsh environments. It must be resistant to water, dust, scratching, and high-velocity impact in harsh environments.

24/7 Operation

Given the requirement of 24/7 working for an extended time, the security display system must be composed of top-notch technology and materials.

It is essential to ensure efficiency, performance, and reliability in the long run. You can look at the product warranty that should also give you an idea about the robustness of the security display.

Anti-Burn-In Feature

The anti-burn-in feature is a must for all LCDs that work round-the-clock, without any break. Since a security LCD display broadcasts security footage and images without any interruption, the extended use may cause ghost images in the LCD.

Keep in mind that extended display use can result in display panel discoloration that causes permanent ghost images (burn-in effect). To cater to this issue in LCDs, manufacturers use anti-burn-in technology. Therefore, you must look for a security display that comes with this feature.

Price

Budget plays a key role in decision-making when purchasing anything. Sometimes, some people pay more focus on low price displays than high-quality. It is a big mistake that they make because it is never a good idea to compromise over security just to save money.

Remember that low-price security displays never present clear on-screen images and may also break down anytime. Therefore, you should always invest in a highly reliable security display.

Conclusion

Security display systems have become a necessity for every commercial and even domestic place. It is important to look for a highly reliable and robust security LCD display that should offer clear and detailed footage of the actual scene.

When looking for a security display, pay attention to special features, like anti-burn and multiple display connectivity. Moreover, the security display should also feature night mode, CCTV mode, and super-resolution for clear images. Various brands are manufacturing high-end security displays and you can find the best one by doing a little online research.

If you still have any queries about the security surveillance display system, you can contact us anytime. We are always happy to assist.

Consumer LCD Display vs. Commercial LCD Display

We have seen an immense improvement in domestic and commercial LCD-LED technology in the modern era. From HD to Ultra HD, and 4K to 8K displays, there is now an extensive range of displays available in the market. When looking for flat-screen television displays, you will have a couple of choices. You can either opt for a commercial LCD display or a consumer LCD display. Both types of displays offer astonishing picture quality and great features. However, their engineering differs in various ways.

Commercial screens or displays are designed in a way that they can work perfectly with a computer. These displays are engineered keeping in mind the long operation hours. In contrast, consumer displays are intended for video and television and they are suitable for shorter watch times.

Introduction

Commercial displays, including LCD and plasma, come with a multi-year warranty. They are expensive than consumer displays and come with top-notch image retention and burn-in features. A commercial LCD display normally includes protection measures for display control in the public environment, such as locking of IR remote and front panel. This feature is usually not available in consumer displays. These displays come with VESA compliant mounting connections since they must support standard mounting devices in the industry.

Since commercial displays have to withstand extended operating hours, they require special kinds of features to deal with heat. Therefore, commercial displays have thermal characteristics to appropriately dissipate heat in both landscape and portrait modes. Moreover, a few commercial plasma screens also come with extra fans that help in dissipating heat. Commercial displays or screens are compatible with AV standards and PCs.

Most commercial displays offer complete grayscale with exceptional liner black-white rectilinear color tracking. Therefore, they will show all 255 luminance (brightness) levels. It is perfectly suitable for PC applications diversity. Most commercial LCD display models support all resolutions of PC, including various refresh rates and wide formats apart from video/TV resolutions.

Various commercial displays are available with RS232 external connector/control, video loop-through, and PC connector capabilities about different video source or single PC configurations. You can also find BNC industrial locking connectors in some models of commercial displays. Because commercial displays work for longer hours, so they are more durable than consumer displays. However, it doesn’t mean that consumer displays are of low quality.

Consumer LCD Display

If you use a consumer display commercially, the warranty of the display will revert to ninety days only. Therefore, you can take your commercially used consumer display to the service center within the first ninety days only. Consumer displays do not come with features like image retention and burn-in technology. Instead, they include standard features only. Unlike a commercial LCD display, consumer displays come without control locking. It is because there is no need for public display security as you need in a commercial display.

All consumer displays are not VESA compliant, unlike commercial displays. Therefore, you may require special extra mounting brackets for your consumer display. Sometimes, buying a third-party mounting can be questionable for its compatibility. Therefore, it is important to make sure you get an appropriate mounting for your consumer display that doesn’t come with it. Typically, you do not get portrait modes with a consumer-grade LCD or LED.

Since consumer displays are suitable for short time watching, you must not keep them on for the entire day. Doing so may result in premature failure of the display since consumer displays are not as good as commercial displays in terms of heat dissipation. A consumer display has a typical design to support video/TV, but they also support PCs. Consumer displays have skewed grayscale for the more bright light that produces vivid colors linked with video/TV motion.

Most consumer displays have a specific design for video/TV formats with limited resolutions for PC. Only a few consumer display models feature external display connector/control, dual display configurations, and video loop-through capability. Another thing that differentiates a consumer and commercial LCD display is that consumer displays don’t come with BNC connectors.

Things to Consider While Buying a commercial Display or TV

When buying a commercial display or TV, ‘screen burn’ must be your first and the most important consideration. A digital screen most likely displays the same content (images/videos) 24 hours a day and 7 days a week. If it happens on a consumer display, the screen would quickly experience the effect of screen burn. Screen burn is the screen pixels discoloration that makes the screen display ghost images. Therefore, you must make sure that the commercial screen you buy has an anti-burn feature. Only this feature can avoid issues like screen burns.

It is also important to invest in a highly robust commercial display since they will be working round-the-clock. The housing of a commercial display is always more robust than a consumer display. The reason behind the stronger housing of commercial displays is that they are usually installed in high-traffic or public areas. Most commercial display models come with metal housings. On the other hand, consumer displays usually have plastic housings that are not very robust. Therefore, you must ensure that the commercial LCD display you buy has extremely robust housing and overall build quality.

Lastly, you should also pay attention to the weight of the display. Commercial displays are heavier than consumer TV screens. Since you will most likely mount your commercial display somewhere, make sure that the screen weight is appropriate and suitable for that place. Keeping in mind all these things when buying your new commercial display should help you choose the most ideal display.



Final Words

Several things make a commercial LCD display different from a consumer display. Commercial displays are always more robust and come with security features that a consumer display lacks. Your home TV is an example of a consumer display. On the other hand, a digital billboard on a highway or a marketing display in the local market is a perfect example of a commercial display. You can search online for the most reliable commercial displays available on the market. Read customer reviews that should help you recognize a high-quality commercial display for your application.

Our experts can help you choose the most suitable commercial displays for your specific application. Contact us now for more details.

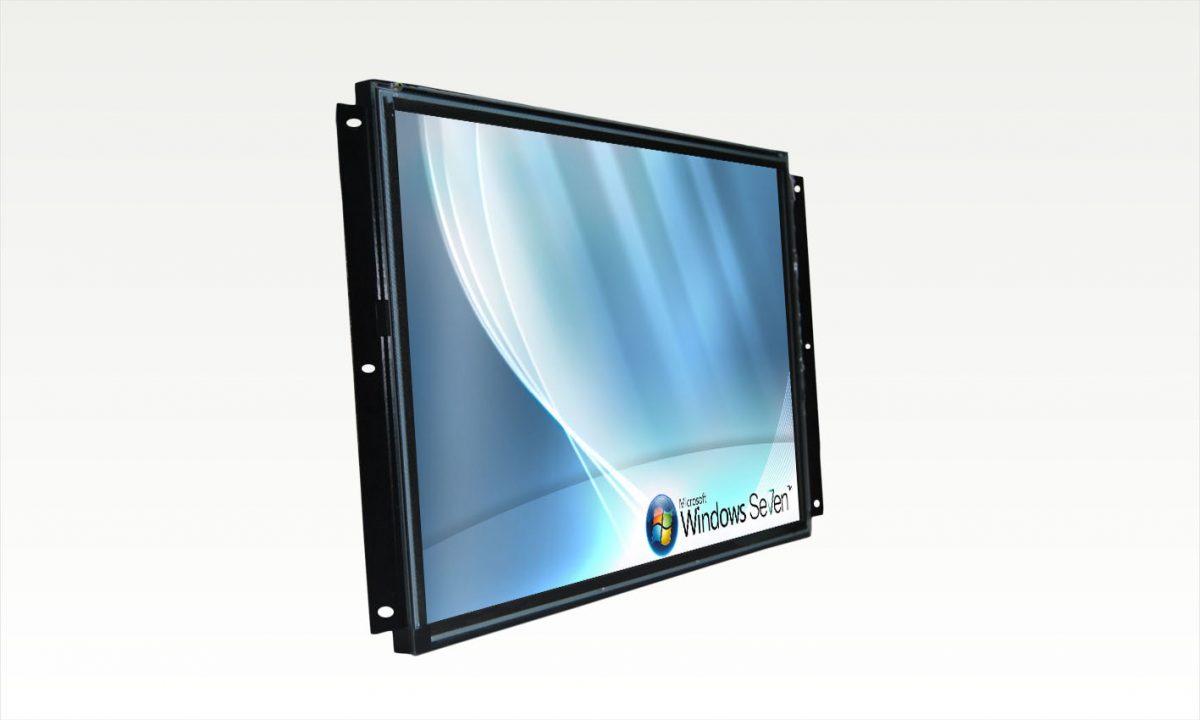

Everything About Industrial LCD Display

Industrial LCD display systems have become a backbone for all sorts of businesses in today’s technologically advanced world. It is critical to choose the right type of monitors and display machines for the success of your business.

Unfortunately, most businesses are still not fully aware of industrial displays. Many people would be thinking if their business requires such systems. In this article, we will discuss everything that you should know about industrial displays. We will cover the different types of industrial displays and try to help you develop a complete understanding of these displays.

Introduction

Industrial displays are machines that businesses use to display digital output. These machines include various types of TFT displays, digital signage, monitors, and such equipment. All such machines combine to perform multiple tasks that are as below:

• Display and record relevant physical quantities
• Helps in various tasks in laboratories
• Show products/services and relevant information interactively to consumers
• Automation of different processes in the industry

Machines and monitors in professional industrial systems are not like typical home television sets. An industrial LCD display is robust and tough enough to work in the long run. The exteriors and inside modules of these machines are created with the help of top-quality industrial-grade components.

A display machine in the industrial screen systems may be mounted or fixed in a workplace. However, some portable small monitors and digital loggers are also available. You can conveniently carry these data loggers with you everywhere you go without any hassle.

Who Uses an Industrial Display System?

Industrial displays have become necessary equipment for any business or industry around. All developed countries, including the USA and China, are using different types of display systems and monitors in various industries. You can think that the entire world right now practically operates smoothly with technologies, like industry-grade display machines.

For example, hospitals are using monitor systems with other equipment in the hospital to monitor patients. Monitors you see in local stores and supermarkets are another example of an industrial LCD display. Such displays work in combination with POS (point of sale) systems for product inventories, and cashier work, etc. Here are different fields and businesses where industrial LCDs have become essential equipment:

• Civil electronics
• Medical and beauty
• Energy project
• Precision instrument
• Public transfer
• Automation
• Machinery
• Electricity equipment

There are many other uses of industrial LCDs in many industries apart from the ones listed above. From large government agencies to small entrepreneurs, industrial displays are simplifying work and ensuring better services.

Anatomy of Industrial Display Machines

Industrial display monitors typically comprise metals and glass. Metals can be stainless steel and aluminum for the chassis. Moreover, most industrial displays come with a robust framework or chassis and rugged display. Manufacturers of the industrial LCD display make sure that the exterior of the monitor is highly robust to withstand the harsh environment and constant usage. Keep in mind that industrial displays are usually installed outdoor.

The exterior of modern-day monitors comprises microprocessors, a display device of the screen, and circuits. A touchscreen display needs highly advanced circuitry with the core technology behind it. Some examples of touchscreen technologies are infrared grid, capacitive, and resistive. Furthermore, the monitor is usually the TFT display module in combination with the LED backlight. Raw materials to assemble industrial displays usually come from Korea, Vietnam, and China.

Tips to Choose the Right Industrial LCD Display

When looking for an industrial display, you will find out a variety of display monitors in the local market. Therefore, how would you choose the best industrial display for your business? Here are the important tips you should follow in this regard.

Industry’s Demand

When searching for an industrial LCD display, it is vital to know the demands in the industry. First of all, ask yourself a question that whether you need an ultra-bright screen? It is critical to know whether you will install the display outdoors or indoor. The device will be an interactive display or people will use it constantly? What rating of protection do you require from your screen? You must ask yourself all these questions when looking for the industrial display.

It is essential to understand the features of the monitor that directly impacts the automation of the business practices and customers’’ experiences. When you know your business needs and industry’s demands, it would become easy for you to pick the best monitor screen for your application.

Choose a Rugged Display

It is critical to choose a rugged display monitor. If the rigged display combines with a robust framework chassis, it will become ideal equipment for any business or industry. Fortunately, most industrial displays are available this way. High-quality chassis and rugged displays contribute a lot to the durability and toughness of the display.

Displays with such features last longer and withstand frequent daily use. Such systems are also best when it comes to resisting tough handling. You must choose a highly robust monitor if a huge number of people will be using the industrial display monitor daily.

Screen’s Brightness Levels and Readability

The main objective behind installing an industrial LCD display is to let your employees and customers take full advantage of the convenience features of these displays. Therefore, make sure that the brightness levels and readability of the screen are good enough for the end-users. It is necessary to ensure that the screen you choose has adequate contrast levels. It will ensure convenient readability for intended users.

Always opt for the industrial display that allows you to adjust brightness levels as per your need, if possible. If you are looking for an outdoor display, make sure that the screen offers ample readability in the sunlight.  You can also improve the readability of the screen with an anti-reflective coating.

Conclusion

An industry-grade display system is a high-quality display and monitor solution. The display varies in size and type according to the specific industry needs and requirements. The common industrial LCD display denominators include higher brightness capacity, durable chassis, display output support, anti-reflective coatings, and TFT screen panels. You can choose between non-touch and touchscreen monitors according to your specific requirements. You can mount an industrial display using VESA, panels, racks, and walls mounts.

Contact us for more information on the industry-grade display system.

Find the Best 10.1 inch LCD Supplier?

Before we get down to finding 10.1 inch LCD supplier, let us focus on the technology. Geek-style monitors for an embedded computer unit consist of TFT 10.1” LCDs. A TFT LCD is a thin film transistor liquid crystal display. This technology improves image quality, such as contrast and addressability. 10.1” LCDs are known for their ultra-thin size, high resolution, and supports for various video formats.

These LCDs have compatibility with Raspberry Pi B+/2, B, and A+. They also support personal computers and Beagle. In this article, you will learn how to find the best 10.1 inch LCD supplier to buy the best unit.

Tips to Find the Best 10.1 Inch LCD Supplier

Various manufacturers are suppliers of 10.1 inch LCD are available on the market. Therefore, it is important to find the most reliable 10.1 inch LCD supplier to make sure you get the best product. Keep in mind that several online suppliers sell low-quality LCDs, so you need to avoid them. The question is how you would identify the best supplier as there are so many. Here are some important tips that can help you find a reliable supplier.

1. A Local Store or Supplier

If you need only one LCD, then you can easily buy it from a local supplier or store. Things become complicated when you need LCDs or LEDs in large quantities for commercial purposes. If you need multiple units, then we recommend you to look for a wholesale 10.1 inch LCD supplier. In that case, make sure that the supplier offers a broad range of LCDs with different features. Also, make sure that the supplier offers secure and safe delivery of the unit at your location.

2. Do Online Research

When looking for LCDs in bulk quantity, you can search online for the best LCD suppliers nearby. Several wholesale suppliers and manufacturers are available online to answer your queries. By doing a little research online, you can find a reputable supplier around. You can read customer testimonials and reviews about different manufacturers and suppliers. It will help you identify the best available LCD supplier selling 10.1 inch LCDs.

3. Complete Solutions

A reputable or reliable LCD supplier should offer a complete solution for LCD requirements. Inquire about the available solutions that you may need along with the LCD. For instance, you may require some accessories related to the 10 inch LCD in the future. If you know that the supplier offers a complete solution for your LCD unit, you will not have to go anyplace else when required. Therefore, look for a 10.1 inch LCD supplier that offers a complete solution for your LCD unit.

4. Customer Support

Every credible and highly reputed LCD supplier should have exceptional customer support services for the customers. It means that you don’t have to wait for hours or call their support again and again for a query. Highly reputable LCD suppliers pay special attention to deal with their customers. They must guide you in a friendly way about whatever issue you need to inquire about.

To know the customer support standards of a supplier, you should call them. See if they respond quickly or make you wait for hours. Professional suppliers take your calls immediately and appropriately help you.

5. What Types of Industries They Serve

Different industries have different LCD requirements. For example, military and aerospace industries require higher quality standards with geographical manufacturing restrictions. Other industries, like automotive, consumer, and industrial markets have specific requirements. Thus, you must inquire about the industries that the 10.1 inch LCD supplier serves. Ideally, a highly reputable supplier serves multiple industries with a complete range of LCDs and solutions.

6.  Do Not Fall for Traps

Budget is a key player in buying any product or service. Usually, people want to buy LCD units at the most affordable rate which is their right. You will find some suppliers with claims of being highly cheap in terms of pricing. You need to understand the difference between being competitive and being cheap. Keep in mind that you can never find high-quality LCDs at cheap rates. Instead, you should look for competitive prices.

You can shortlist a few reliable suppliers and see their rates for the same LCD unit. This is how you can identify the most reliable supplier with competitive rates. Remember that buying a cheap price LCD means low-quality results and premature failure of the device.

7. Ask for Recommendations

One of the straightforward ways to find a reliable 10.1 inch LCD supplier is to ask for recommendations. Look around and try to remember people you know who recently bought 10. Inch LCD(s). You can ask your friends, colleagues, and neighbors if they know a reliable LCD supplier. If anyone of them knows one, it will save your time and help you buy the best unit from a reliable supplier.

8. Can the LCD Unit Handle any Change?

We see fast upgrades in the gadgets world, whether it is an LCD or any other electronics item. Such upgrades are important to keep the device compatible and running with the latest ever-changing technology. Reliable display vendors keep this in mind when manufacturing LCDs. Before you buy your 10.1 inch LCD from a supplier, ask them if the unit is capable of handling future changes. Never invest in an outdated LCD unit because it would be a piece of scrap in the future.

We hope that you can find a reliable 10 inch LCD supplier by following the above tips. There are many manufacturers and suppliers like Jinweishi Photoelectric Technology Co., LTD that you can trust. If you need one or a couple of LCDs, you can also consider online stores like Amazon and eBay.

Take Away on 10.1 inch LCD supplier

There are multiple uses of a 10.1 inch LCD in different industries, such as automotive, industrial, and consumer markets. Since there are many manufacturers and suppliers, you need to do a little research to find the most reliable source to buy your LCD(s).  It can be a local store or supplier or a wholesale supplier from where you can buy LCDs in bulk quantity.

Make sure that the supplier has a good overall reputation and offers a complete range of 10.1 inch LCD solutions for different markets. Never buy a low-quality LCD unit as it will probably experience a premature failure, making it a costly investment in the long run.

LCDs from the Best 5 inch LCD Supplier and Manufacturers

A 5 inch TFT LCD is an ideal solution for people who need a bigger, high-resolution display for the Raspberry Pi. Usually, these high-quality 5 inch LCDs support 800x480p resolution. However, the resolution varies with different models and displays. It is straightforward to get the Pi on a display board. Normally, the package of a 5 inch LCD includes screws needed for attaching the Pi on your display board. These LCDs are panel-mountable mini HDMI monitors that are simple and small. Yet, it is simple to connect these displays with a computer via HDMI output. The compact shape of 5 inch LCDs also makes them perfectly compatible with any electronics product. Today, we will list the best 5 inch LCD supplier products that you can trust.

If you are looking for high-quality 5 inch LCDs for a specific use, then this article is for you. Let us help you choose the best unit.

Best 5 inch LCDs from Reliable 5 Inch LCD Supplier

You would find numerous LCD suppliers and manufacturers in the market. Since 5” and 10” LCDs have become popular for their diverse applications, more and more companies are manufacturing these displays. Therefore, it can become a little complicated process to buy the right 5” LCD from a reliable 5 inch LCD supplier or manufacturer. To make things easier for you, here are the top 5” LCDs from dependable suppliers that you can buy.

1. ELECROW 5 Inch Raspberry Pi Screen

It is a mini HDMI LCD screen with 800x480p resolution from a well-known LCD manufacturing brand ELECROW. This 5” LCD is known for high resolution, full-color display, quick response time, and broader viewing angle. You can manually control the backlight of this LCD and turn off the backlight switch for lower energy consumption. It is a resistive touchscreen display that you can also operate with a pen. You will get the touch pen inside the LCD package.

It supports Raspberry Pi 2B+, 3B, 3B+, and 4 devices. The best part is that you can also use it with a standard HDMI-supported device, like your PC monitor. To do so, you require a power supply of 5V/2A and set the device to 800x480p resolution. However, the touch functionality of the device will not be available with this setting. Along with the 5” HDMI monitor, you will get a touch pen, a CD, 4pcs of copper pillars, and an HDMI adapter.

2. 5 inch HDMI LCD (H)

It is another reliable 5 inch LCD with RoHS compliance from a reliable 5 inch LCD supplier. It is a capacitive 800x480p resolution display that supports numerous systems. The best thing about this display is that you can use the software to configure the resolution up to a resolution of 1920x1080p. It supports mini computers, like Raspberry Pi, BB Black, Banana Pi, and Jetson Nano. Additionally, you can also use this 5 inch LCD with your desktop computer.

This LCD also supports gaming consoles, such as Sony PS4, Nintendo Switch, and Microsoft XBOX 360. Therefore, it also becomes a great choice for gamers. The OSD menu of this product is available in multiple languages for contrast/brightness adjustment and power management. There is an audio jack (3.5mm), audio HDMI output support, and speaker connector. You will get one HDMI cable, one HDMI to Micro-HDMI adapter, a Type-A USB plug to Type-B micro plug cable, and a pack of RPi screws.

3. JWS 5 Inch LCD High Resolution 800x480

It is one of the best transmissive color active-matrix LCDs that use TFT as a switching device. This LCD consists of driver ICs, a backlight unit, and a TFT display panel. It is a perfect 5 inch LCD for many home appliances, commercial displays, instruments, elevators, and PIN pads, etc.  JWS is one of the top TFT LCD brands manufacturing LCDs for 10+ years. This brand offers customized solutions according to the specific requirements of different industries.

The JWS 5 Inch LCD is a diagonal display with 800 x 3(RGB) x 480 resolution. It has an anti-glare surface treatment and digital interface. Apart from 5 inch LCDs, JWS also manufactures touchscreen displays in other sizes, such as 10.1 inches, 10.4 inches, 7 inches, and 4.3 inches. Therefore, you can get LCDs in different sizes from this brand.

4. 5 Inch 800x480 TFT LCD HD Screen Monitor

Are you looking for a reliable automotive 5 inch LCD supplier? If yes, then this 5 inch LCD is a perfect choice for you. It is a high resolution 800W x RGB x 480H TFT LCD with 2 ports for video output. It comes with a rearview priority parking feature that automatically starts up and displays video from the rearview camera. This LCD supports video equipment, such as a camera, VCD, and DVD. There is no audio output or input in this LCD. The reasonable price of this LCD is another positive point of this 5 inch LCD.

Keep in mind that this LCD monitor is only for cars. Therefore, it requires a DC 12V power supply and a temperature between -120 to +50 centigrade. The material of this LCD is high-quality plastic. The package includes one car monitor, one adhesive bracket, one power cable, and one user manual. The user manual is available in the English language only. You can mount this LCD on the dashboard of your car.

All four LCD monitors discussed above are 5-inch monitors with high-quality material and exceptional resolution. You can compare these monitors to know the best choice according to your specific needs.

Conclusion

Various brands are available in the market selling 5 inch LCD monitors for different use cases. You need to find the best 5 inch LCD supplier to get the most reliable 5 inch LCD unit for your use. All the products covered in this article are from top LCD manufacturing brands. You can buy any of these products with the assurance that the product will perform flawlessly in the long run.

However, proper care and maintenance are necessary to avoid premature failures. You should read the user manual that comes with the product and do proper care and maintenance according to the given instructions.

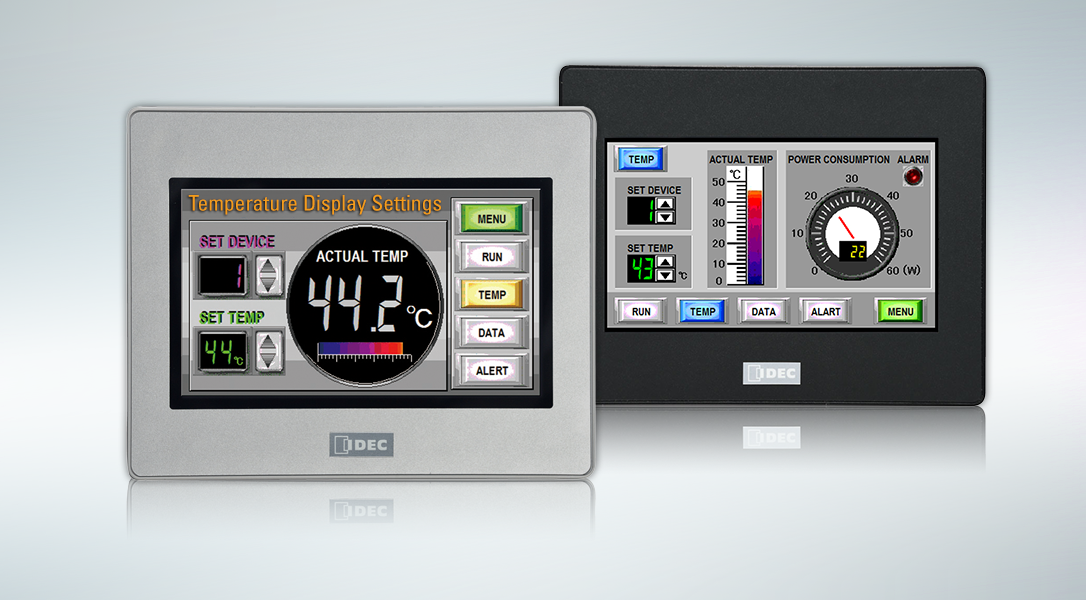

HMI Design: Right Practice

HMI design technology is one of the reliable practices to build an HMI LCD display. The HMI screens are intuitive screens for users. These screens are efficient in terms of operation and they also do not create stress on the eyes. Control systems have shifted from conventional push buttons to HMI displays within manufacturing. Therefore, the HMI design technology has become a great technology for new installations. There is an array of HMI design-based systems. However, the fundamental principles of a good HMI design system are always the same.

Today, we will discuss the HMI design considerations and different essential considerations. It will help you a lot if you are looking for an HMI screen display. Therefore, let’s start the discussion by sharing some important information on choosing the right HMI hardware.

HMI LCD Display Systems: Choosing a Suitable HMI Hardware

HMI screens are available in different sizes, buttons, colors, and user inputs. It is necessary to know about all parameters and their effect on the design. Most OEMs (Original Equipment Manufacturers) manufacture HMI screens in various sizes. Small size screens are available at lower costs, but they are not suitable for large system designs or when you require more details.

HMI LCD display size plays a key role in how sophisticated the design would be. Usually, it is a possibility to change a smaller screen design onto the big-size HMI screen. It is recommended to shrink elements for larger screens. It is always great to create extra pages that could break down HMI screens.

Usually, OEMs never restrict elements quantity on the specific screen, but a dedicated small screen usually comes with low RAM as compared to larger ones. It leads to some latency problems when adding more elements. Here are the important points to known.

• Always choose an appropriate screen size for your system.
• Never shift the HMI design of a large screen on a small screen. Instead, you should redesign individual screens.

These points are important to keep in mind when choosing an HMI LCD display for your application.

Touch Screen vs. On-Terminal Push Buttons

Although push buttons terminals are not very popular these days, some OEMs, such as Allen Bradley and Siemens are releasing HMI terminals with push buttons support. These terminals enable various HMI designs that depend on such inputs. Additionally, Allen Bradley is still offering support for the push buttons terminals to accomplish navigation.

Such terminals require different configurations as compared to their pure touchscreen counterparts. It is because you usually need to benefit from such functionalities for key functions, navigation, or otherwise. So, the HMI design will be different. Here are the different points to keep in mind in this regard.

• For HMI design controls, minimize the external buttons use. The touchscreen feature is the most suitable solution for every kind of HMI design.
• Physical buttons HMI programs are difficult to move to touchscreens. Therefore, you must plan the software accordingly.

The HMI screen design differs according to the data structure of the HMI. Design patterns also differ for the distributed and machine HMI design.

HMI Screen Design

An HMI LCD display could be simple or complex according to the dictation of the system. Usually, an HMI display should offer the essential information required but shouldn’t confuse the operator. You should break down a complicated system into sub-systems if it needs an array of tags. You can utilize a control system’s physical layout for the HMI design.

Example: HMI Design Plant for Food Processing

1. Plant Overview: A high-level status of every single area as well as critical assets
2. Area Control/Overview: Area overview/control screen for all manufacturing zones; refrigeration, packaging, and production. Control scheme to help a user set high parameters for every production area. For example, production rates, and temperature, etc.
3. Line Control/Overview: Each packaging/production line must have a higher overview screen level so the user should easily check the asset, stop/start line, and parameters adjustment status.
4. Asset Control/Overview: Every single asset on the production line (barcode scanner, palletizer, filler, and case packer) must have a control screen and overview. Such elements help operators in monitoring asset status and granular parameters change like case size and motor speed, etc.

Utilizing HMI Faceplates

You can easily create an interface for an array of elements using faceplates on your HMI screens. Such elements may be motors, pumps, valves, and more. You can design a faceplate as the pop-up on the upper side of your main screen as required. These designs help programmers in developing a particular interface where an operator can monitor data on the main display while making necessary adjustments on the secondary display.

Example: When the operator is monitoring the main overview screen, he may decide to adjust conveyor belts’ speed for slowing down the production downstream.

Position: It is ideal to place the faceplates in the center within the parental screen. However, there can be some exceptions so the screen elements might be hidden in that case.

Size: A pop-up screen that is 50% smaller in size than a parent screen is ideal. However, it relies on the specific needs of the system used.

You must focus on the above-discussed position and size guidelines. They are necessary to ensure a perfect HMI design.

Conclusion

HMI Designs need an engineer to keep in mind various software and hardware aspects for a perfect HMI LCD display. The objective should be to create a design that is efficient, system-specific, and intuitive. When looking for an HMI design terminal, it is essential to consider all protocol requirements, system parameters, and hardware features. When creating an HMI screen, it is necessary to consider screen layout and navigation layout before completing the system design. The navigation dictates how a user would move among the screens. On the other hand, the design of the screen dictates the efficiency of the usage.

Creating the right HMI design is a skillful art. However, certain primary principles and rules are necessary to follow in different industries. You can call us for further queries about HMI designs and screens.

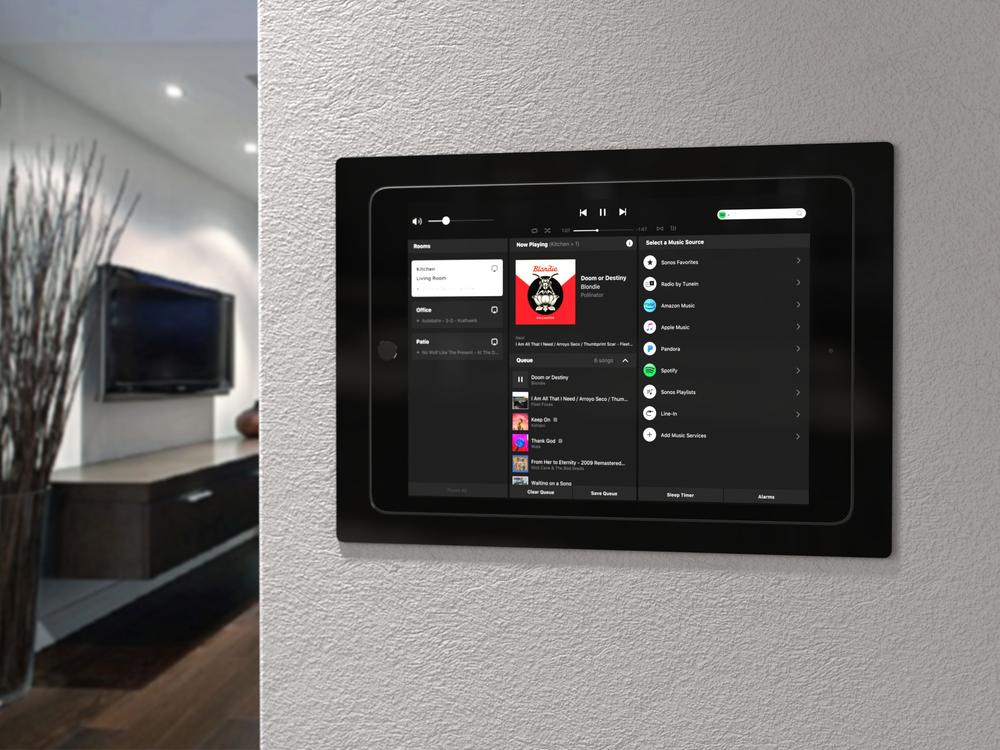

How to Buy the Best Smart Home LCD Display TV?

When looking for a television, you will have a variety of options to choose from. There are options, like smart home LCD display, HDR, 4K, OLED, and LED, etc. The television market gets technology updates too often. Because of the immense variety in types of television or screens, it might get a little confusing to choose the right type of LCD screen.

Therefore, if you are finding it a little hard to choose the best display, this guide is your great helping hand. You should read this guide till the end to make an informed decision about the type of smart LCD you want to buy.

Things to Know Before Buying SMART HOME LCD DISPLAY

There are a few imperative things and factors you must know before you buy a smart home LCD display. First of all, you need to know what type of display you need for your television. It is the basic thing that determines the quality of the display you will experience.

Apart from that, other necessary factors include screen resolution, screen size, display refresh rate, sound, and the price of the display. It is also important to know the connectivity options available on the display. For example, some LCDs come with wireless connectivity and many won’t.

Difference Between OLED, QLED, and LED

The screen is the most important aspect of every television. Various panel technologies are available with different characteristics. You can choose from a broad range of technologies, like standard LCD or plasma.

There are so many new screens available on the market to buy. Here is the basic information that you must know about different screen technologies before buying your smart home LCD display:

	OLED	QLED	LED
Motion Blur	Perfect	Great	Good
Black Level	Perfect	Good	Good
Color Volume	Good	Great	Good
Viewing Angle	Great	Poor	Poor
Luminosity	Good	Great	Great
Image Retention	Poor	Great	Great
Grey Uniformity	Good	Average	Average



LEDs are a great option in terms of price and availability. Now, let’s take a quick look at the most popular display technologies for a better understanding.

OLED Screens

OLED screens are one of the most popular screen technologies available on the market. However, OLED (organic-light-emitting-diode) is a highly expensive television technology at the moment. This technology uses individual light-emitting organic pixels when electric current moves through it. OLED televisions are known for great black levels.

LCD or LED

If we talk about the most popular television screen technology these days, then it is LCD-LED. Or, it is simply marketed as LED. It has a similar liquid crystal screen display, but it comes with LED backlighting. It makes the television slimmer with smaller borders.

This smart home LCD display also offers a much brighter and better viewing angle. The best part is that LEDs are known as the most energy-efficient display screens that help you save a lot of money. It is one of the basic reasons behind the immense popularity of LED TVs.

Quantum Dot

Quantum Dot is also known as QLED. It is the latest screen technology in the market that relies on quantum dots for producing colored light. There is a special layer that improves the colors and brightness of the television.

These screens perform better than standard LCD-LED screens in many aspects. Quantum Dot is an uncommon, relatively new, and expensive display technology.

Samsung is the most premier manufacturer of Quantum Dot TV screens in the market. Since the technology is uncommon and expensive, so it is only available on high-end televisions. However, the price of QLED screens is still a little lower than OLED TVs.

Screen Size

Whether you wish to purchase a high-performance or basic television, the most vital factor you need to consider will be the size of the screen. How many people you have in your home can help you choose an appropriate screen size.

It also depends on the place where you will use your TV. Therefore, choose a smart home LCD display that is right according to space and family members in the house. Another key factor is your budget. Remember that larger screens are expensive than smaller screens.

Screen Resolution

Screen resolution describes how many pixels are there to complete the screen picture. More pixels mean finer details and sharper pictures. Keep in mind that higher resolution is necessary if you want to experience greater picture results. Full HD remains an industry standard for a long that is still known as a high-quality resolution across the world.

Several manufacturers are now offering TVs with Ultra HD resolution, also known as 4K screens. With 4K resolution, even smaller objects have greater detail. The latest advancement in screen resolution technology is 8K that offers extremely higher resolution. 4K and 8K resolution sets are much expensive than standard Full HD TVs.

Refresh Rate

A higher refresh rate (RR) is ideal in the world of smart home LCD display technology. 60 Hertz is a standard refresh rate. However, this rate is not sufficient for scenes with quickly moving objects as it would blur the image on the screen.

120 Hertz is the most optimal refresh rate that is necessary for some high-end games. Therefore, it is essential to buy an LED-LCD that has a higher refresh rate.

Connectivity Options

When searching for the right television, it is critical to take a look at how many HDMI inputs are available in the set. You can use such ports in numerous ways.

For example, you can use them to add a soundbar, a gaming console, and a chrome cast, etc. If you want to buy a 4k HD TV, make sure that the set offers HDMI 2.0 support so it can accommodate Ultra HD connections in the future.

Final Words

Buying a smart home LCD display requires you to consider a lot of important factors. Of course, your budget is a basic factor in deciding about the type and resolution to buy.

However, there are some common concerns, such as connectivity options, refresh rate, screen size, and screen technology. You must learn about these factors and choose your TV accordingly to buy the best available LCD-LED for your home.

To know more about smart home LCD technologies available, you can talk to us anytime.

Medical LCD Display and Consumer Display

LCDs or LEDs have become a necessity of every home, office, commercial, and healthcare facility these days. From entertainment to security and more, LCDs have many uses in different industries. A medical LCD display is a kind of display or screen that fulfills the requirements of medical imaging. Usually, these displays come with tailored technologies, like image-enhancing, to achieve consistent brightness in the long run. Medical displays are also known for ergonomic reading, noise-free images, and DICOM compliance.

Consumer Display vs. Medical LCD Display

A consumer display comes with specifications to accommodate medical-grade displays. These displays usually cost less. However, there are many other considerations than just specifications. Therefore, you may have a question that why opt for medical displays? The key benefit of a medical LCD display is that it automates calibration and quality assurance to ensure round-the-clock compliance with necessary medical standards. Another significant benefit of a medical display is its maximum uptime. These are the traits that make the medical display so reliable.

Moreover, the total medical display ownership cost is usually less than consumer displays. Their maintenance and installation costs are lower than consumer displays for which medical displays become the most viable and cost-efficient option. Apart from that, a medical display presents more detailed and higher-quality medical images. What’s more, these displays offer exceptional advantages in terms of comfort and workflow.

Enhanced Reading Accuracy

A medical LCD display is known for its optimized reading accuracy. It is one of the key reasons why these displays are suitable for the medical industry. Here are the different traits of medical displays that you should know.

1. Brightness

Latest consumer displays offer astonishing brightness initially, but they degrade too often over time. A medical display has the capabilities to perform 1000 cd/m or even more. More importantly, the output of the luminance remains stable over time. It means that the display will stay DICOM 3.14 compliant all the time. Therefore, the brightness of medical LCDs makes the reading experience convenient.

2. Noise

Most medical systems deal with noise problems through technologies, like integrated uniformity. Medical displays offer enhanced grayscale presentation and stable brightness. It ensures exceptional visualization of refined radiographic abnormalities. So, medical displays are also better than consumer displays in terms of noise.

3. Viewing Angle

The viewing angle of any display determines the overall readability quality of the screen. The best thing about a medical LCD display is that they are ACR compliant and preserves at least 350cd/m. These displays also ensure exceptional color values and a higher contrast ratio under various viewing angles. So, the better viewing angle of medical LCDs makes them a superior alternative to consumer displays.

For the above-discussed traits, medical displays ensure far better reading accuracy than consumer displays. This is why medical-grade LCDs are preferred displays in the medical industry.

Reading Comfort and Workflow

Medical-grade displays are also known for improved workflow and reading comfort. Here are the different reasons why they have an edge over consumer displays in terms of reading workflow and comfort.

1. Multi-modality Imaging

Various medical-grade displays have special designs for multi-modality imaging. Therefore, this display design ensures multiple modalities viewing (both grayscale and color) on one screen. It enables image fusions and side0by-side comparisons immediately, without switching the display. So, multi-modality imaging is a prime benefit that comes with medical-grade displays.

2. Ergonomic Reading

A recent study concluded that about 87 out of 100 radiologists experience a kind of physical distress while reading images. A few medical-grade screens come with non-reflective glass and special built-in features for enhanced reading ergonomics. For instance, you can look for a medical LCD display with features for boosted display brightness and controlled ambient lighting.

Some high-end medical-grade displays have special designs to present medical images within an ideal vision field to ensure easy visual acuity. Usually, medical screens are bigger size screens. Therefore, you can easily view the entire image on one screen without panning or enlarging the image. There is another feature called scale-to-fit which makes reading on a medical display more ergonomic and efficient.

From the various benefits and features we shared above, it is conclusive that medical displays are a much better alternative to consumer displays in the medical industry. Therefore, you should not opt for consumer displays if you are looking for a screen for a medical or healthcare facility.

Different Uses of Medical-Grade Screens

There are different uses of medical-grade screens or monitors within medical facilities. Let’s take a quick look at the different uses of these screens.

Point of Patient Care: Medical-grade screens are suitable for use at patients’ points of care within a healthcare facility. Usually, these displays are VESA-mounted devices and run on hot-swappable batteries, making them a perfect display option for point of patient care.

Operating/Surgery Room: Surgeons require a detailed and precise display for patient surgeries in operation rooms. Only a medical LCD display can fulfill unique challenges and conditions in a surgery or operating room. You can buy a 4k medical-grade display for excellent resolution and clarity.

Diagnostic/Radiology Imaging: For radiology or diagnostic imaging, the display needs to present unparalleled clarity. The display must offer HDR (high-dynamic range) so that the radiologist can work efficiently. Fortunately, medical displays offer HDR and 4K resolution, which make them the best screens for radiology imaging.

Clinical Review: Medical specialists often require a secondary display for modality viewing and PACS. You can use medical displays for both secondary and primary display purposes. Medical displays are also available with touchscreen functionality, making them a more convenient solution for clinical review display needs.

Medical-grade displays are the most ideal screens when you need a display for purposes like medical imaging. These displays are much better than consumer displays in terms of readability, brightness, noise, and viewing angle. A medical LCD display fulfills certain requirements for medical regulations, quality assurance, and image quality. Therefore, you must prefer medical-grade displays over normal consumer displays for the many advantages that these displays offer.

If you still have any questions about medical-grade displays, you can feel free to contact our representative, anytime.
